13 Maintenance
13.8 Drive belts / drive chains
67089
– Carry out a test run and check belt tension.
87394

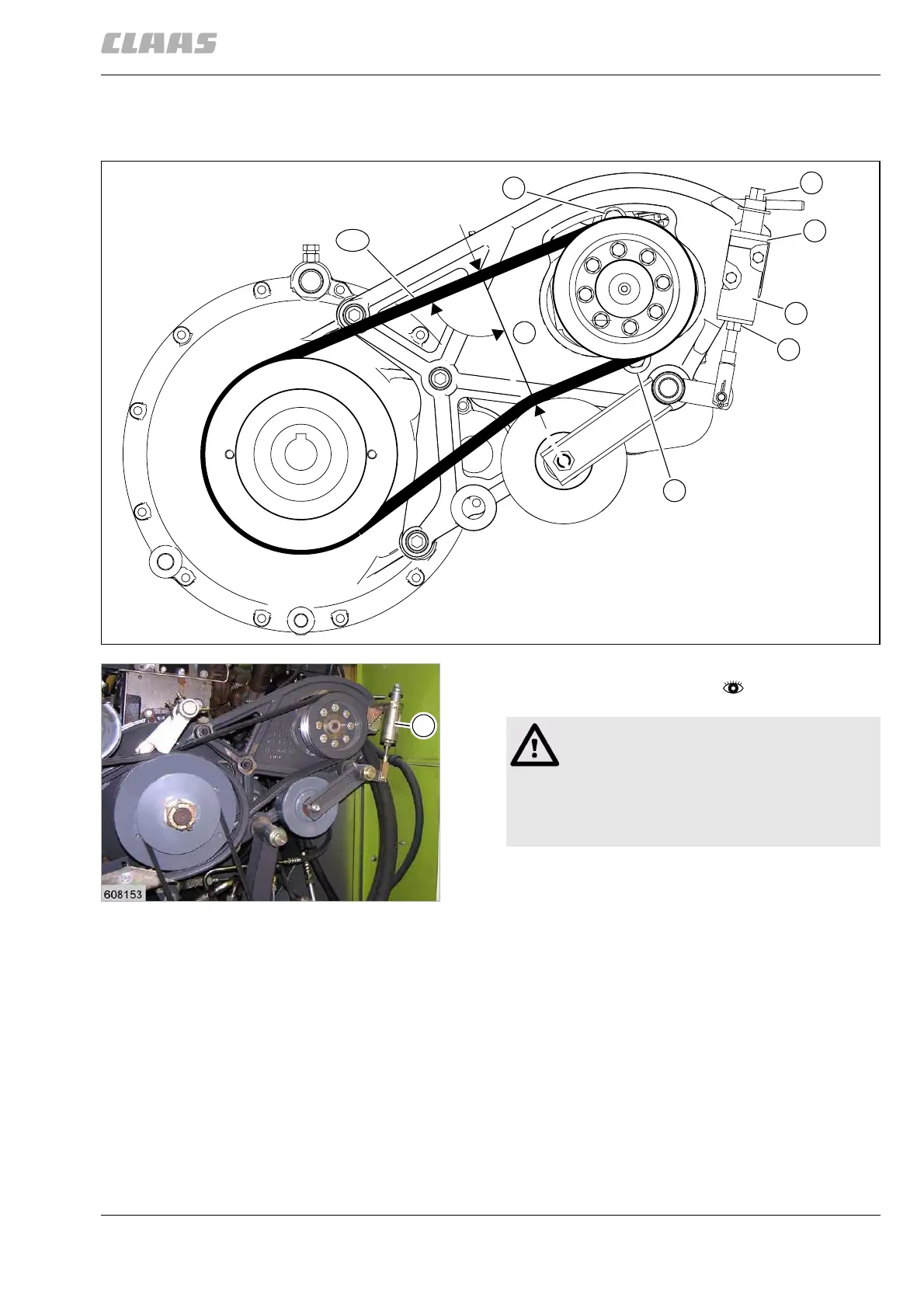

13.8.8 Adjusting belt (R5)
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
– Slacken off nut (2) until tube (6) has a little play
from bracket (4).
– Check dimension (X) = 187
+10
mm .
– Slacken off bolts (3) if required and relocate
hydraulic pump until dimension (Y) has been
reached. Ensure that tube (6) always has some
play from bracket (4) while relocating.
– Tighten bolts (3).
– Jam spring guide tube (1) and nut (2). Ensure that
tube (6) makes contact with bracket (4) without
play.
– Carry out a test run and check belt tension.
29986
85
09
°
R5
2
6
1
4
X
3
3
86
23840
6
Warning!
Pinch points during assembly work.
Bruises of limbs.
– Keep limbs out of the hazard area.
– Use suitable tools.
