Claas DOMINATOR 150 - 10 Adjusting Belt (R9)

00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09 329
13 Maintenance
13.8 Drive belts / drive chains
67089
87600

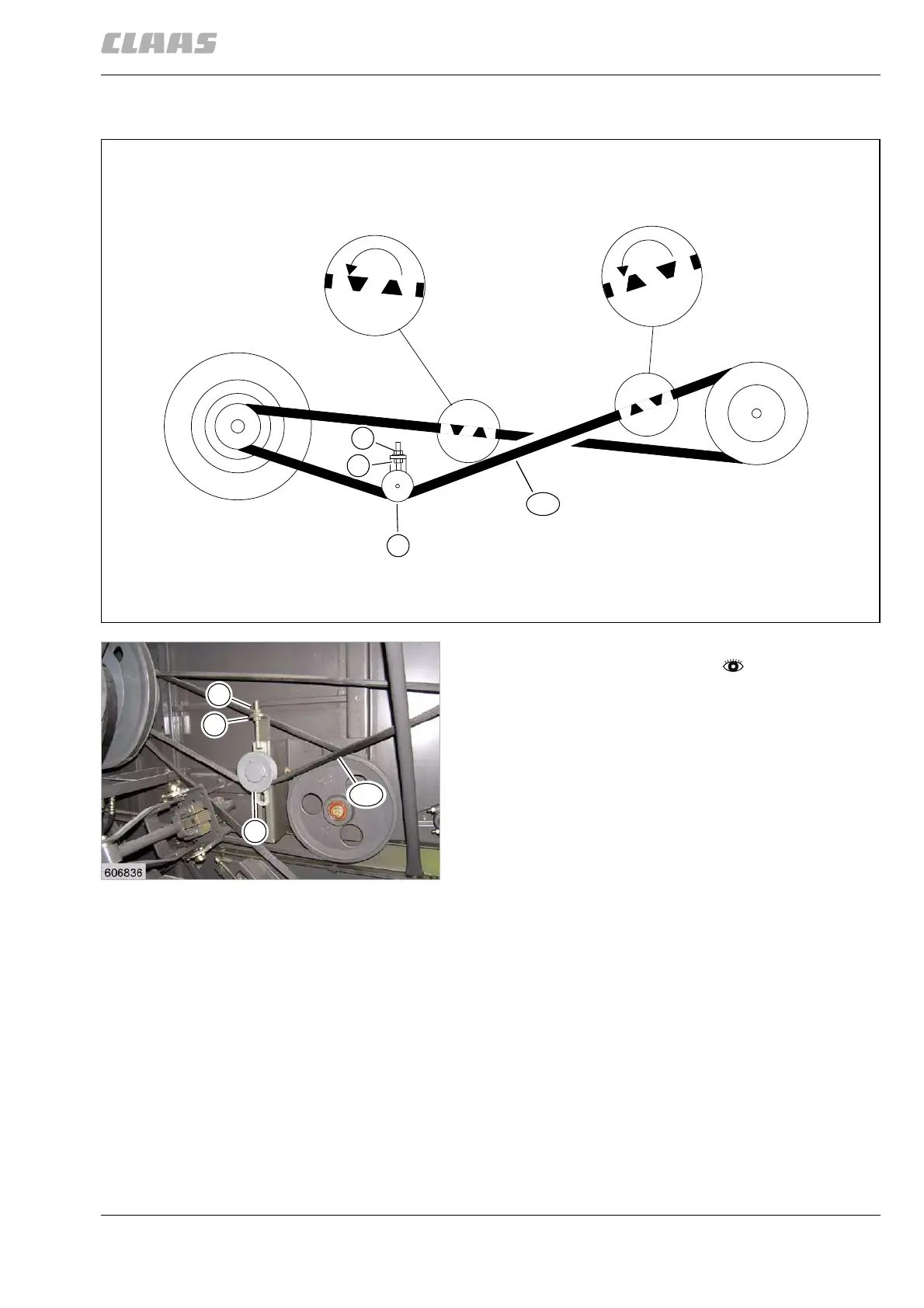

13.8.10 Adjusting belt (R9)
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
– Loosen the clamping screw of the jockey
pulley (1).
– Turn nuts (2) and (3) until belt (R10) is tensioned.
– Lock nuts (2) and (3).
– Tighten the clamping screw of the jockey
pulley (1).
- Tightening torque = 40 Nm
– Carry out a test run and check belt tension.
30039
89
0°8
0°8
1
80°1
2
1
3
R9
90
23841
1
R9
2
3
