13 Maintenance
13.8 Drive belts / drive chains
67089
– Fit guards (1 and 2) and angle iron (3).
– Install drive wheel on the left machine side.
87717

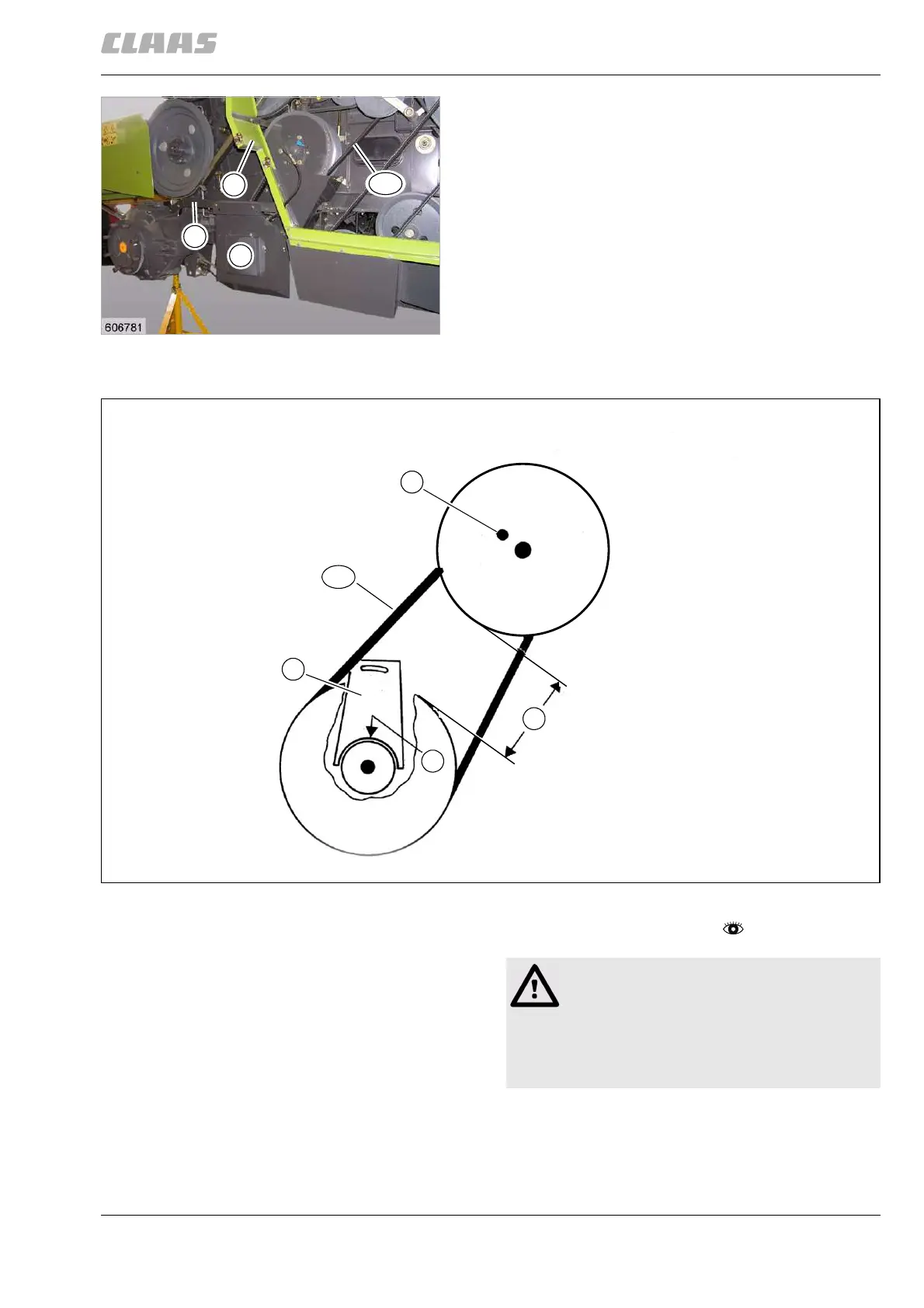

13.8.18 Adjusting belt (R14)
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
Setting the ground drive variable-speed pulleys:
– The distance (X) between the variable-speed pul-
leys must be 280 mm.
105
23402
1
3
2
R13
30056
106
5
x
R14
4
6
Warning!
Pinch points during assembly work.
Bruises of limbs.
– Keep limbs out of the hazard area.
– Use suitable tools.
