13.8 Drive belts / drive chains
67089
– Unscrew the hydraulic hose from hydraulic cylin-
der (5).
– Remove belt (R14).
87716
13.8.17 Installing belt (R14)
– Observe the general warnings at the beginning of
the "Maintenance" chapter.
– Adjust belt (R14).
– Install belt (R14).
– Remove special tool (4).
– Install belt (R13).
– Screw on hydraulic hose (5).
Environment!
Lubricants and fuels end up in the
environment.
Environmental pollution.
– Lubricants and fuels must be collected
and stored in suitable containers and dis-
posed of in a way that is harmless to the
environment and in accordance with
existing anti-pollution regulations.
103
567

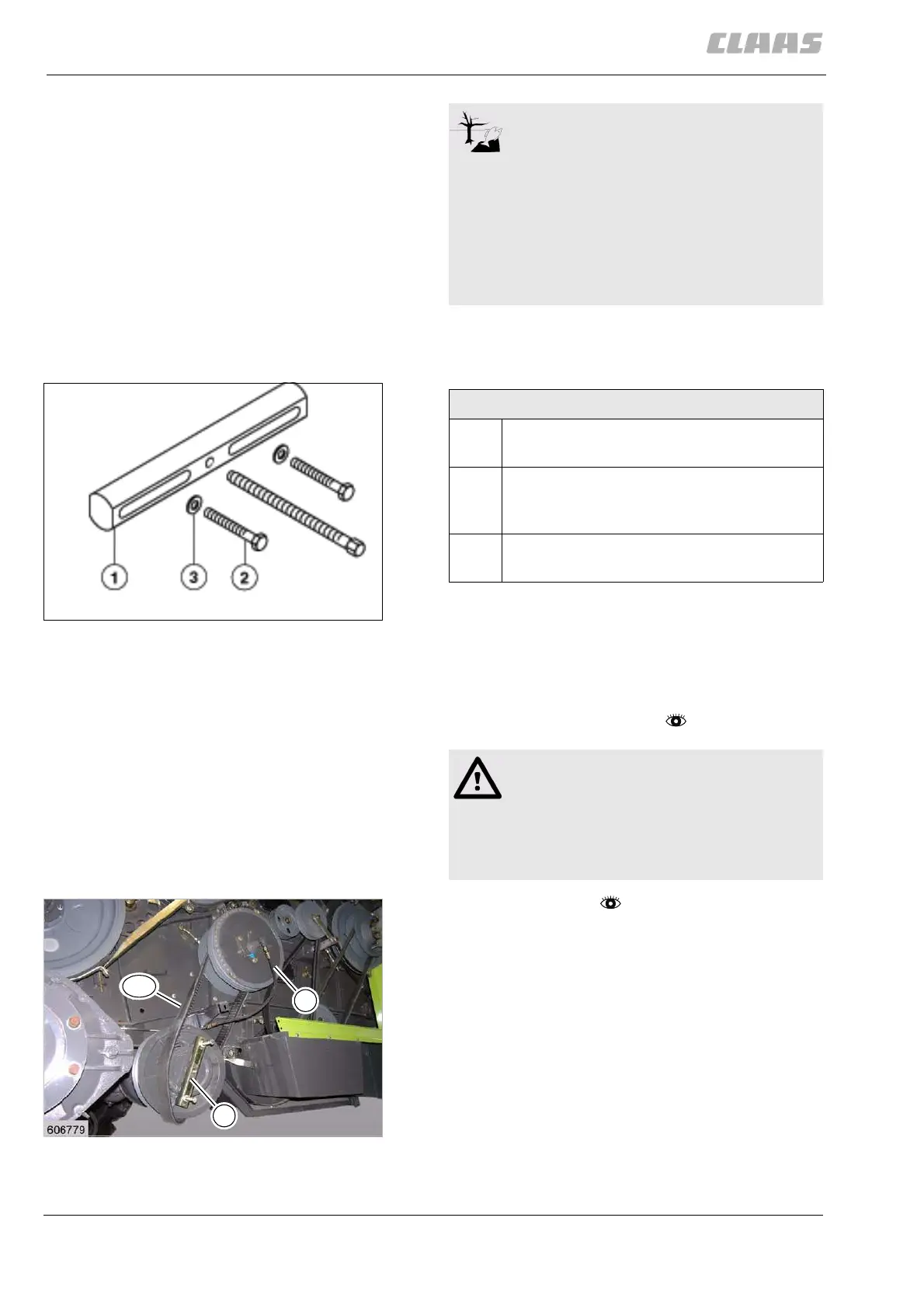

Special tool 5
1 Puller bridge
Part no. 00 0181 621 0
2 Hex. bolt
M 12 x 200 ISO 40172 - 8.8
Part no. 00 0244 421 0
3 Washer 13 x 30 x 3
Part no. 00 0236 844 0
Warning!
Pinch points during assembly work.
Bruises of limbs.
– Keep limbs out of the hazard area.
– Use suitable tools.
104
23403
4
R14
5
