Type 810 ...
– Disconnect the power supply plug.
– If present, disconnect the breakaway cord from
the trailer hitch.
– Secure the rear axle of the transport carriage so it
will not roll away.
– If installed, swing out the trailer gauge wheel.
– Push down pawl (4) and pull pin (5) out of the
trailer hitch.
– Slowly drive the tractor forward.
– Push down pawl (4) and push pin (5) into the
trailer hitch up to the stop (6).
– Release the pawl (4) and ensure that lock (7) has
engaged at the trailer hitch.
Type 841 ...
– Disconnect the power supply plug.
– If present, disconnect the breakaway cord from
the trailer hitch.
– Secure the rear axle of the transport carriage so it
will not roll away.
– If installed, swing out the trailer gauge wheel.
– Push lever (1) upwards until it catches.
– Slowly drive the tractor forward.
– Lock trailer hitch with lever (1), using a short blow
with the ball of the thumb in opening
direction (type 841).
52

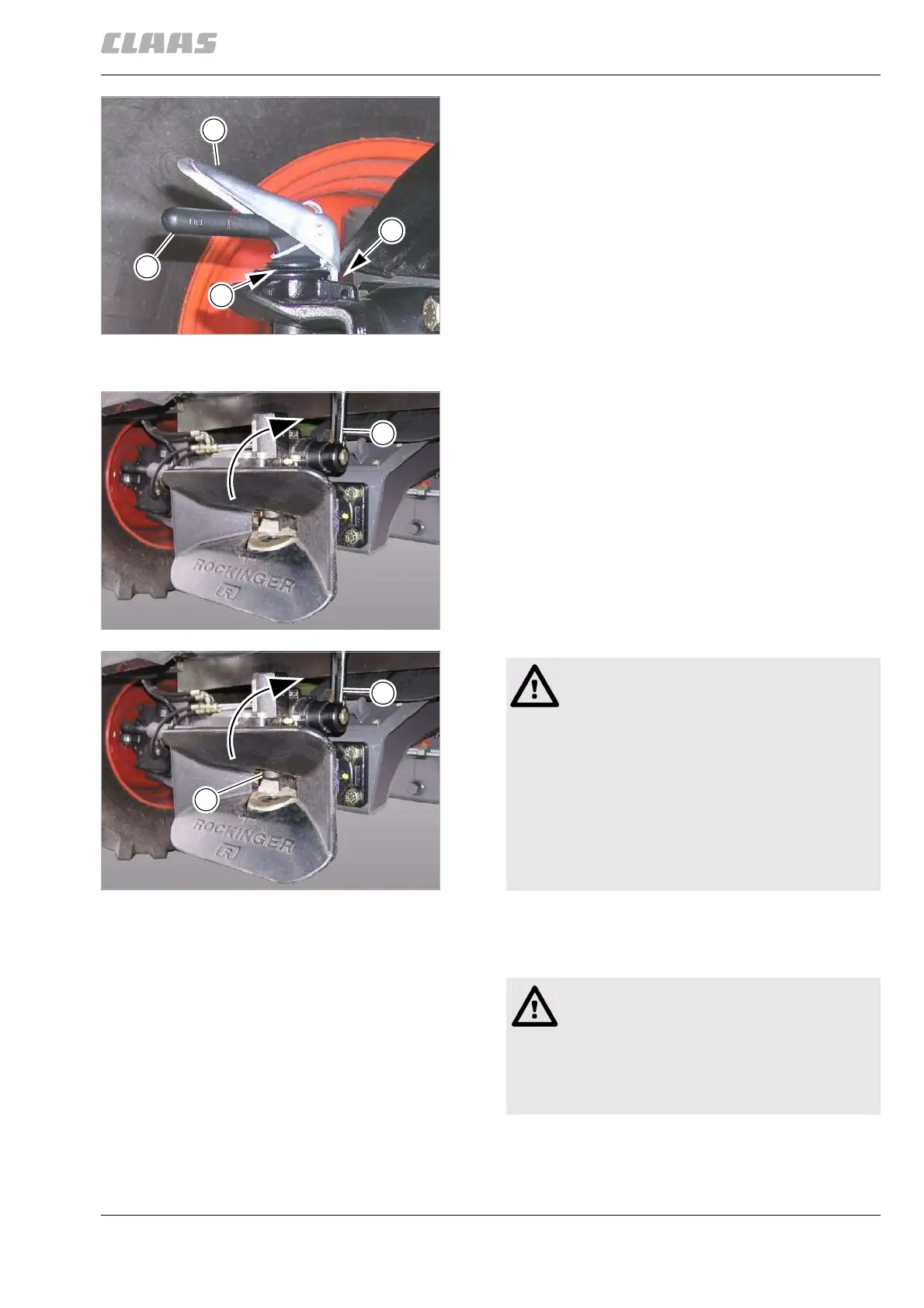

Trailer hitch type 810 ...
20717
4
5
6
7
53
Trailer hitch type 841 ...
19009
1
54
Trailer hitch type 841 ...
19009
1
2
Danger!
Locking the trailer hitch by hand.
The locking pin shoots down.
Serious injuries of the limbs.
– Never lock the trailer hitch by hand by lift-
ing pin (2) (type 841).
– Lock trailer hitch exclusively with
lever (1), using a short blow with the ball
of the thumb in opening
direction (type 841).
Danger!
Non-locking of trailer hitch.
The locking pin socket fills up with dirt.
Malfunction of locking.
– Lock trailer hitch when not in use.
To Next Page
