13 Maintenance
13.5 Engine
67089

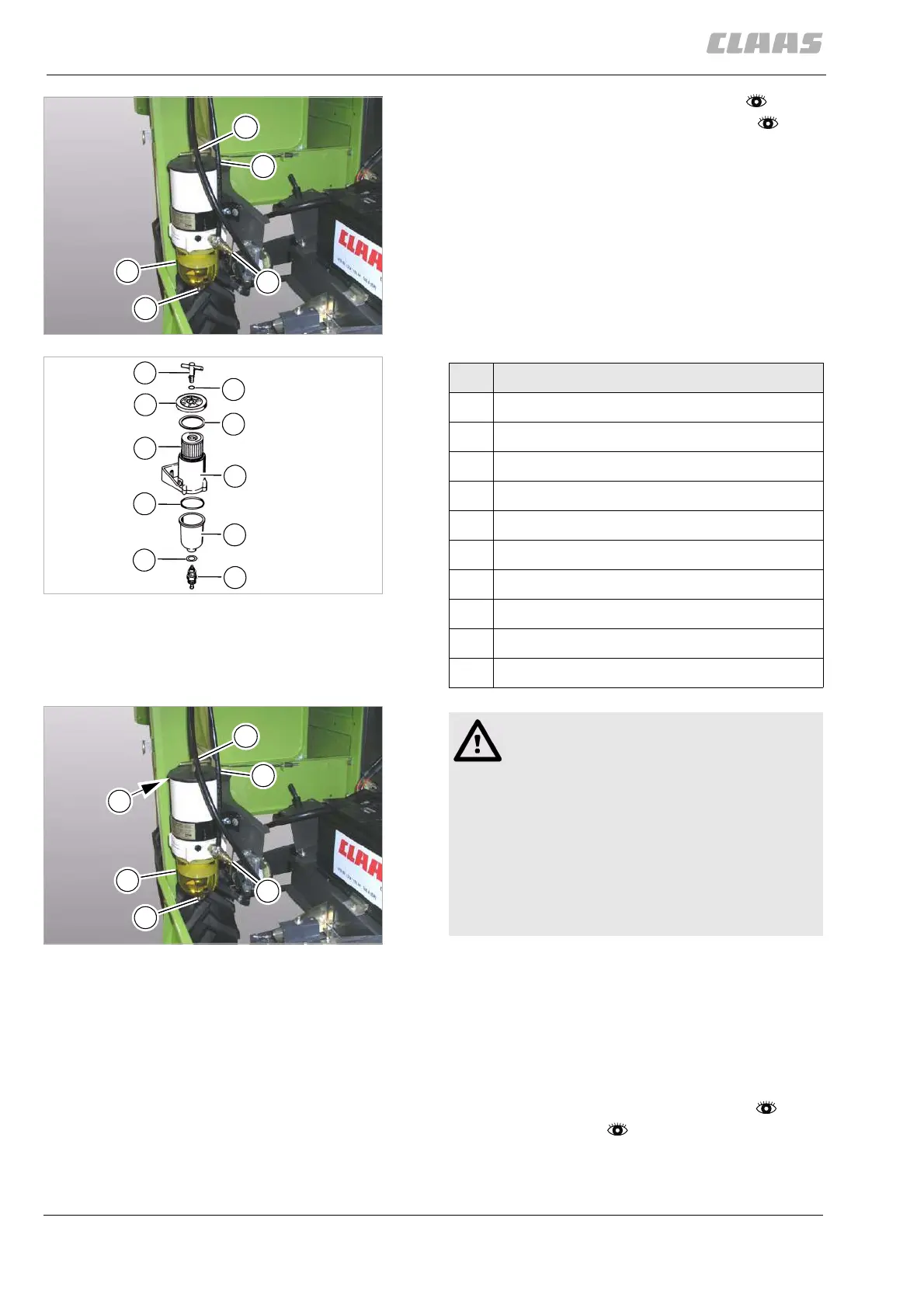

– Drain condensation at the fuel prefilter.
– Close the shut-off tap of the fuel system.
– Drain fuel from filter.
- Hold a suitable container for the remaining fuel
in the sight glass (4) beneath the hose.
- Loosen bolt (2).
- Loosen the toggle bolt (11) by approx. 2
revolutions.
- Collect escaping liquid in a suitable container.
- Tighten bolt (2).
– Unscrew toggle bolt (11) and remove cover (9).
– Remove filter cartridge (7).
– Replace damaged seal (8).
Observe installation position of seal!
– Install new filter.
Press straps of the filter into the housing!
– Tighten toggle bolt (11).
– Replace damaged seal (3).
– Tighten bolt (2).
– Open the shut-off tap of the fuel system.
– Bleed fuel system.
24
29517
1
2
4
9
11
25
13806
7
9
2
4
6
8
10
11
3
5
Designation
2Drain plug
3Seal
4 Sight glass
5Seal
6 Housing
7 Filter cartridge
8Seal
9Lid
10 Seal
11 Toggle bolt
26
29517
1
2
4
9
11
8
WARNING:
Use of unpermissible spare parts or
lubricants.
Machine damage or increased wear.
– Spare parts and lubricants must at least
comply with the technical standards
required by the manufacturer of the
implement!
– The use of genuine CLAAS spare parts
and lubricants is recommended.
