Claas DOMINATOR 150 - Page 294

294 00 0293 210 2 - BA DOMINATOR 150/140/130 - 12/09
13 Maintenance
13.5 Engine
67089

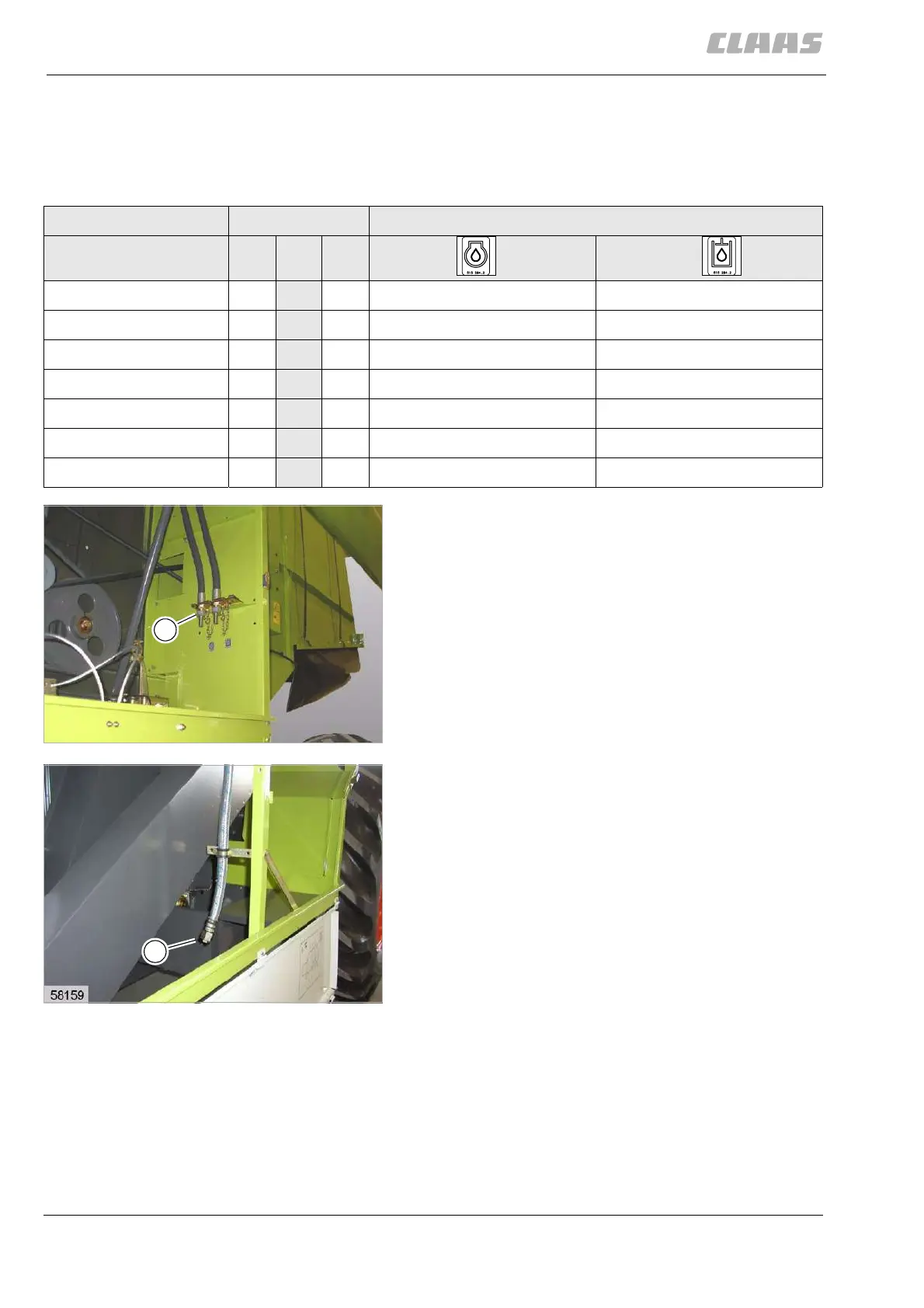

– Identify the position of the engine oil drain nozzle
in the table and on the machine. The oil drain noz-
zle is marked on the machine by an engine oil
decal.
– Fit a suitable hose on the engine oil drain nozzle.
– Slacken off nut (1) slightly.
– Collect the used oil in a sufficiently large
container.
– Tighten nut (1).
– Remove hose.
– Unscrew engine oil drain plug (1).
– Collect the used oil in a sufficiently large
container.
– Tighten drain plug (11).
DOMINATOR Position of drain hose
Engine type
150 140 130
Engine oil Hydraulic oil
CATERPILLAR C-6.6 •
left machine side, inside left machine side, outside
CATERPILLAR C-6.6
• left machine side, inside left machine side, outside
CATERPILLAR C-6.6
• left machine side, inside on the steering cylinder
CATERPILLAR 3056 E •
right machine side left machine side, inside
CATERPILLAR 3056 E
• right machine side left machine side, inside
CATERPILLAR 3056 E
• right machine side on the steering cylinder
PERKINS 1006-6T
• right machine side on the steering cylinder
36
left machine side
29543
1
37
right machine side
23415
1
