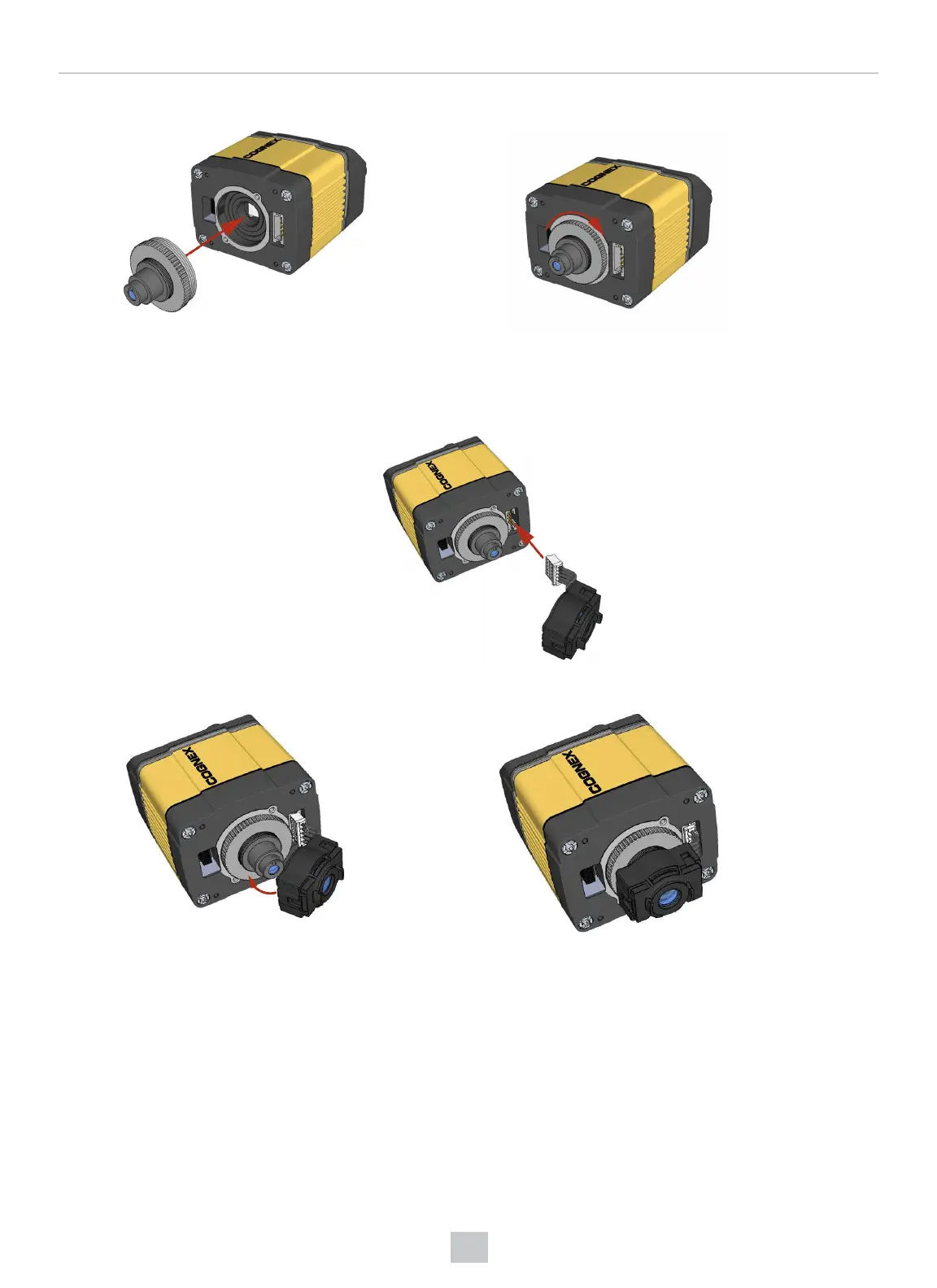

1. Attach the 24 mm Lens to the device by using the screw thread on the metal ring.
1. Insert the Liquid Lens cable into the connector of the device.
2. Attach the Liquid Lens to the front side of the 24mm Lens.
