7-2 Using an Internal Modem
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: Karen Williams Saved by: Integrity Group Saved date: 06/01/00 3:44 PM
Part Number: 168894-001 File name: CH07.doc
To connect the modem to an RJ-11 wall jack
—
IMPORTANT:
The modem cable, which has a 6-pin RJ-11 connector
at each end, may contain noise suppression circuitry
1
. This
circuitry prevents interference with TV and radio reception.

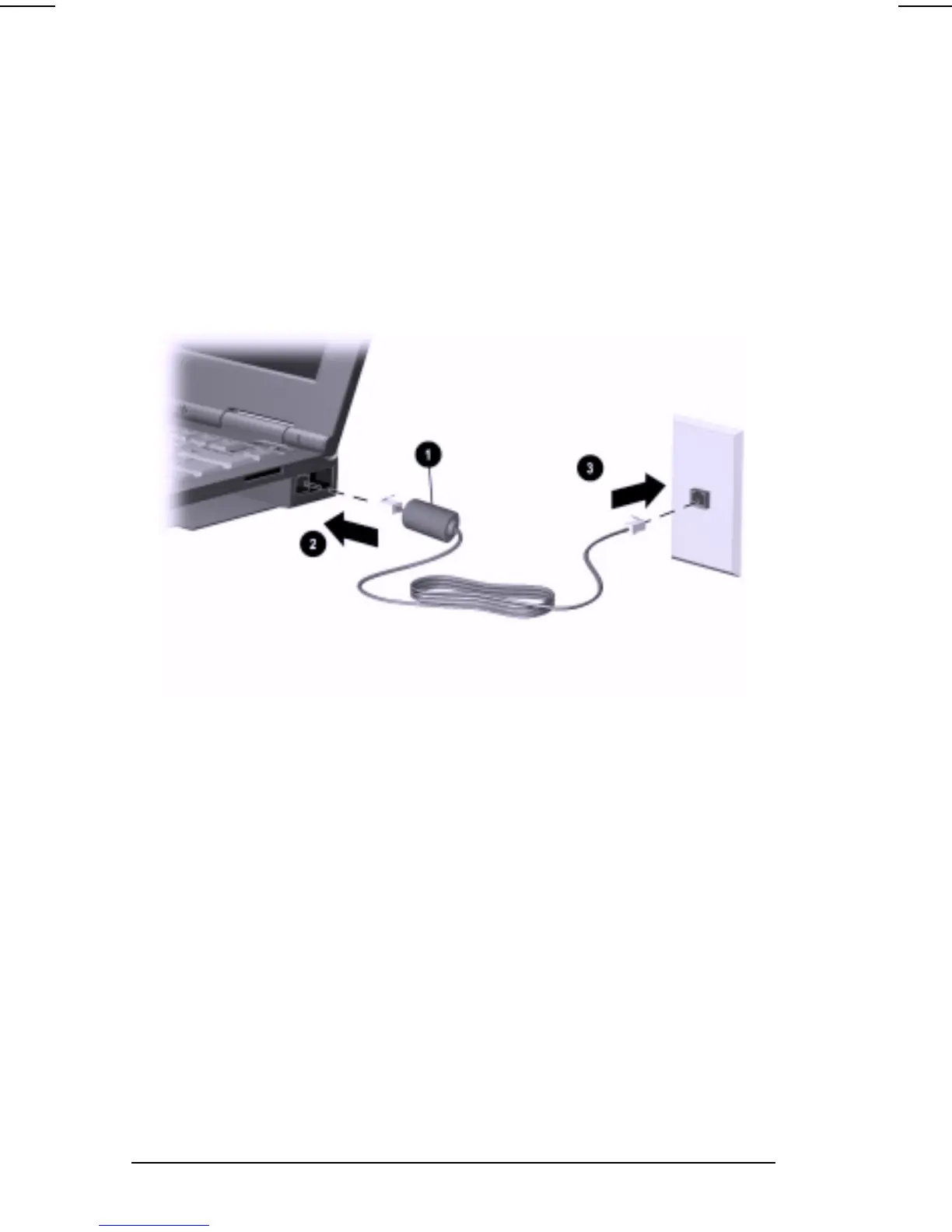

Orient a cable with this circuitry as shown in the following
illustration.
1. Plug one end of the modem cable into the RJ-11 jack on the
computer
2
.
2. Plug the opposite end of the cable into an RJ-11 wall jack
3
.
