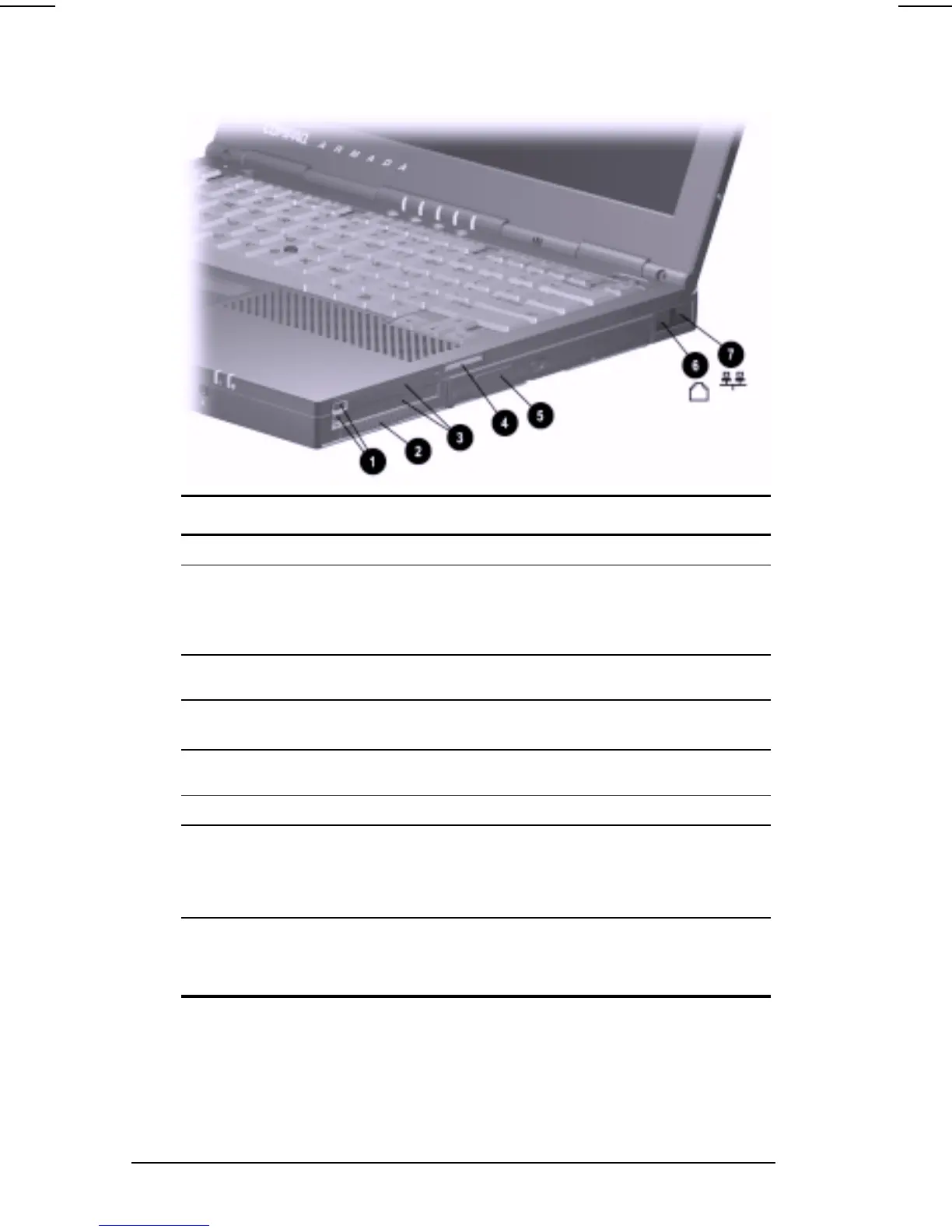

Right Side Components
Right Side Components
Component Description
1
PC Card eject buttons
(2)
Top button: Ejects a PC Card from the
top PC Card slot.
Bottom button: Ejects a PC Card from the
bottom PC Card slot.
2
Airflow vent
Allows airflow needed to cool computer
components. Do not block airflow.
3
PC Card slots (2) Support 32-bit (CardBus) and 16-bit
PC Cards.
4
Acoustic vent
Allows airflow needed to cool sound
components. Do not block airflow.
5
MultiBay
Supports MultiBay devices.
6
RJ-11 jack (internal
modem models only)
Connects the modem cable or a standard
telephone cable to the computer.
NOTE:
A modem cable is included with
internal modem models.
7
RJ-45 jack (network
models only)
Connects the network cable.
NOTE:
A network cable is included with
network models.
