Inserting a Hard Drive Assembly into the MultiBay
1. Save your work, then shut down the computer.
2. Be sure the slide tabs on the sides of the Armada MultiBay
hard drive adapter are closed flush with the sides of the
adapter.

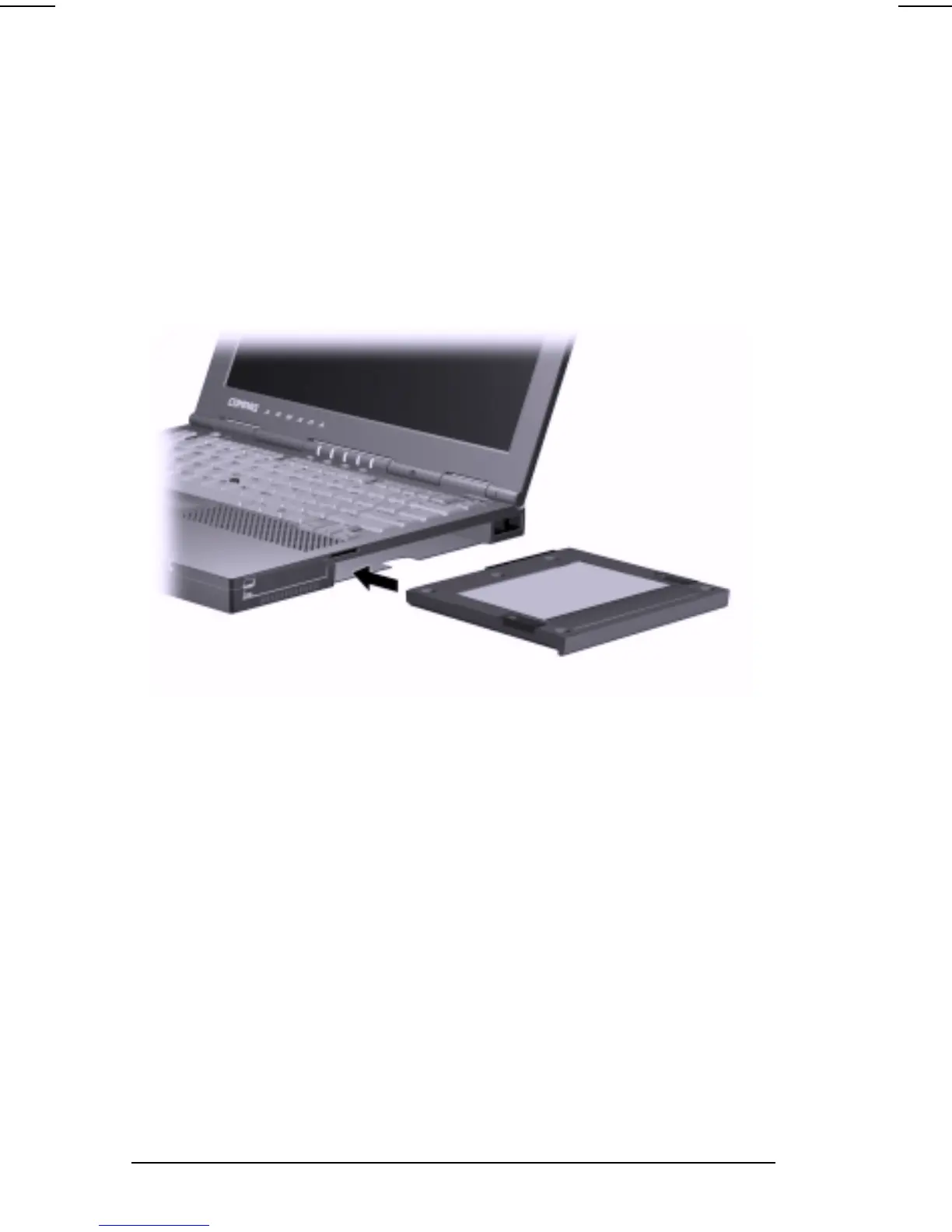

3. With the connector on the drive assembly (the hard drive
inserted into the MultiBay hard drive adapter) facing the
computer, slide the hard drive assembly into the MultiBay
until the assembly is seated.
