5-10 Using Drives
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: Karen Williams Saved by: Karen Williams Saved date: 05/31/00 10:00 AM
Part Number: 168893-001 File name: CH05.doc

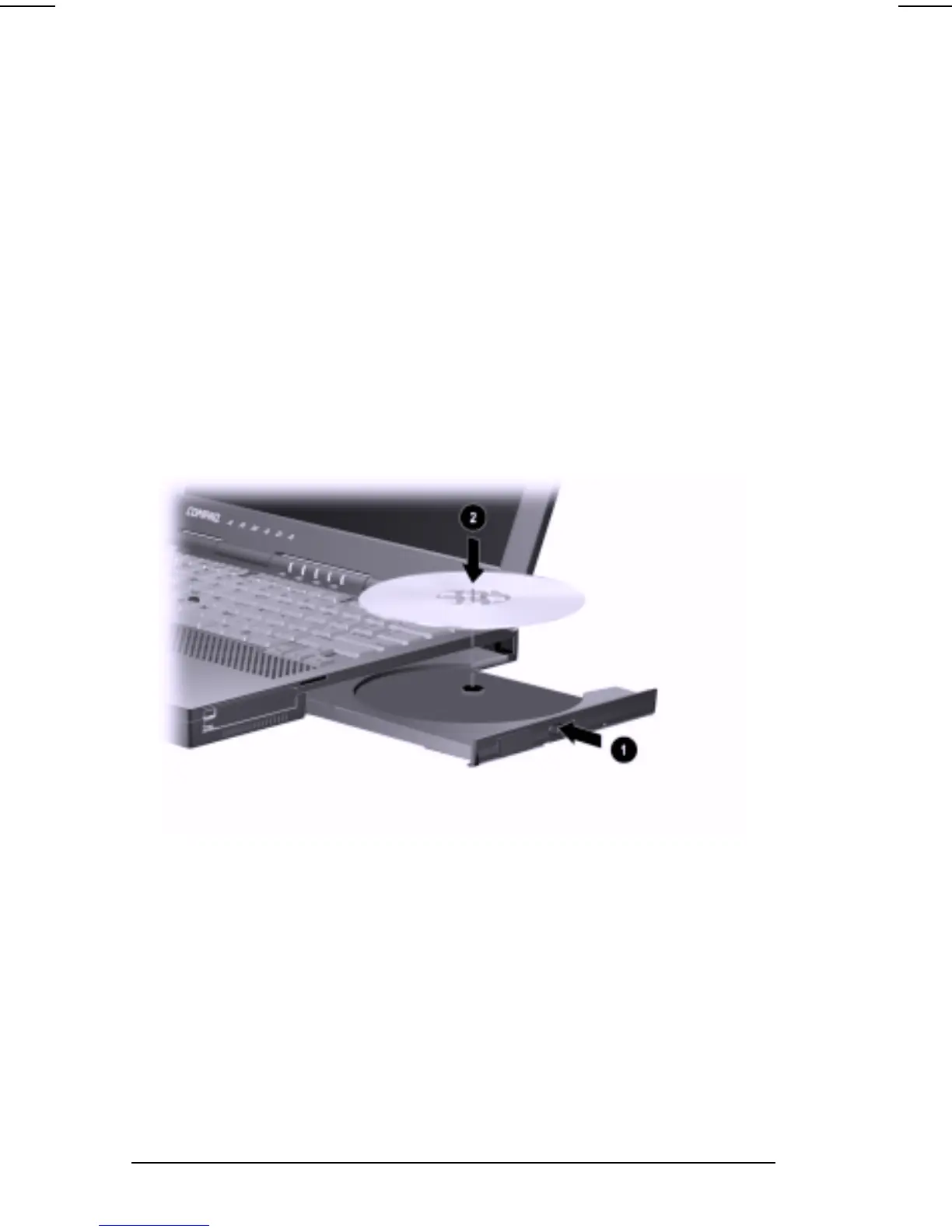

Inserting a Disc into a CD-ROM Drive or DVD-ROM Drive
1. Turn on the computer.
2. Press the media eject button on the front panel
1
to release
the media tray.
3. Slowly pull out the tray until it is fully extended.
4. Remove the disc from its protective case and press it onto the
tray spindle
2
. Handle the disc by the edges, not by the flat
surfaces.
5. Push lightly on the front panel of the media tray to close it.
The drive performs a diagnostic check and automatically begins
reading the table of contents (TOC) on the disc. The light on the
drive turns on while the TOC is being read. The light turns off
when the drive is ready to receive commands.
