Upgrading Memory 9-3
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: Karen Williams Saved by: Karen Williams Saved date: 05/29/00 5:29 PM
Part Number: 168893-001 File name: CH09.doc

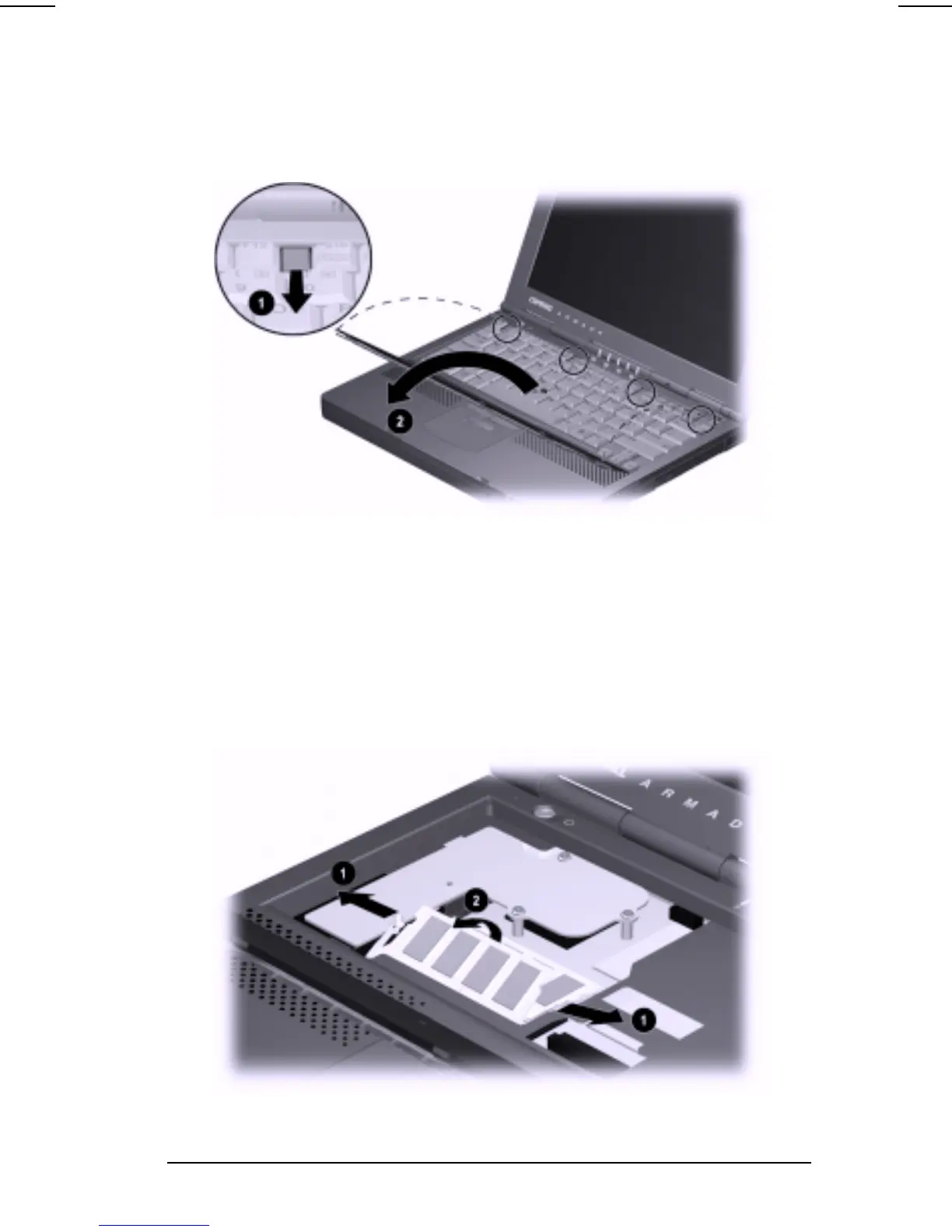

5. Release the four tabs located along the top of the keyboard
to release the keyboard from the computer
1
.
6. Carefully fold the computer keyboard away from
the computer
2
.
Removing a Memory Expansion Board
1. Pull away the retention clips on each side of the memory
expansion board
1
. The board tilts upward
2
.
2. Lift the edge of the memory expansion board to a 45-degree
angle and gently slide it out of the memory expansion slot.
3. Place the removed memory expansion board in an
electrostatic-safe container.
