Using Drives
5-9
COMPAQ CONFIDENTIAL - NEED TO KNOW REQUIRED
Writer: Karen Williams Saved by: Karen Williams Saved date: 05/31/00 10:00 AM
Part Number: 168893-001 File name: CH05.doc

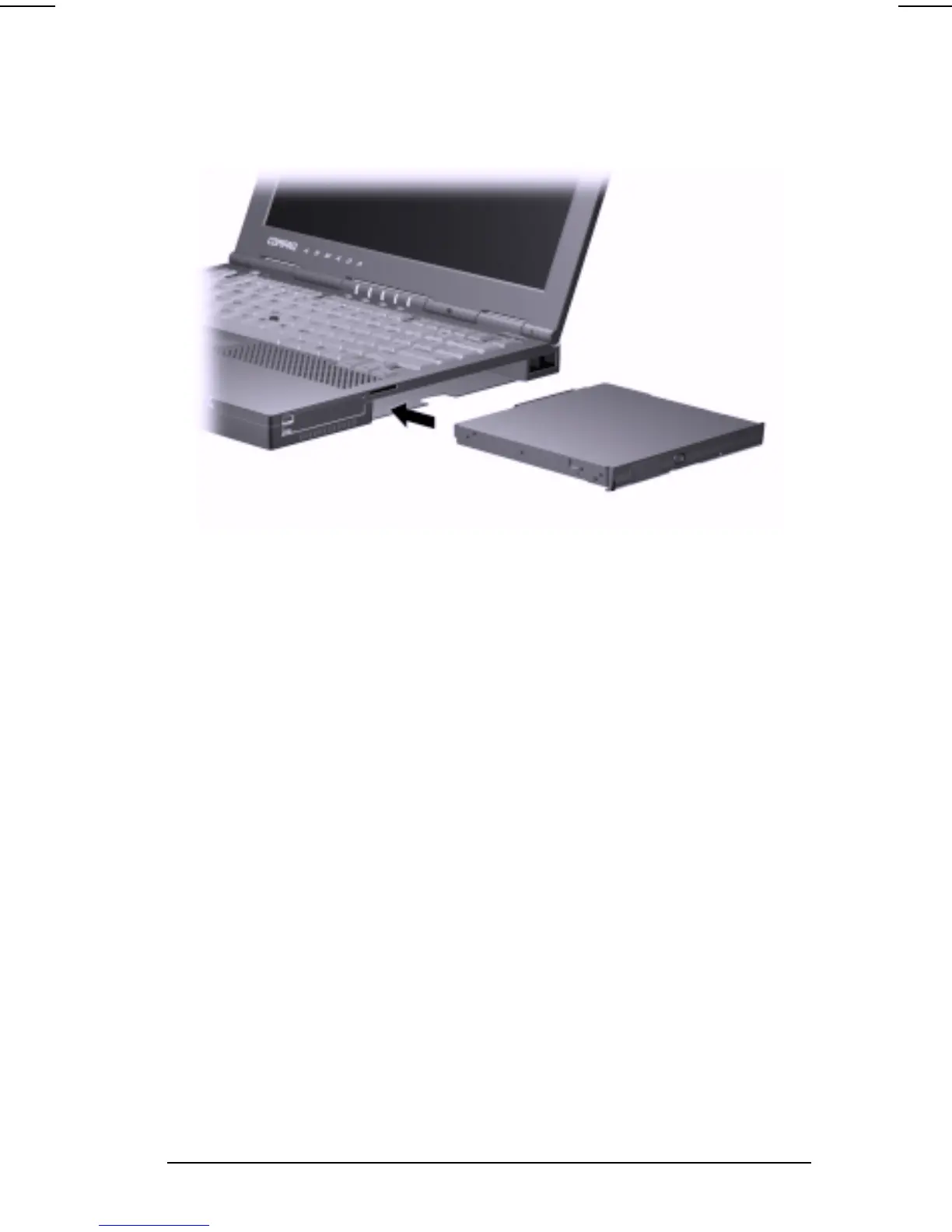

Inserting a CD-ROM Drive or DVD-ROM Drive
With the drive connector facing in, slide the drive into the
MultiBay until the connectors engage and the drive is seated.
