LPOD Outdoor Amplifier / Block Up Converter Revision 9
Ethernet-based Remote Product Management MN-LPOD
4–7

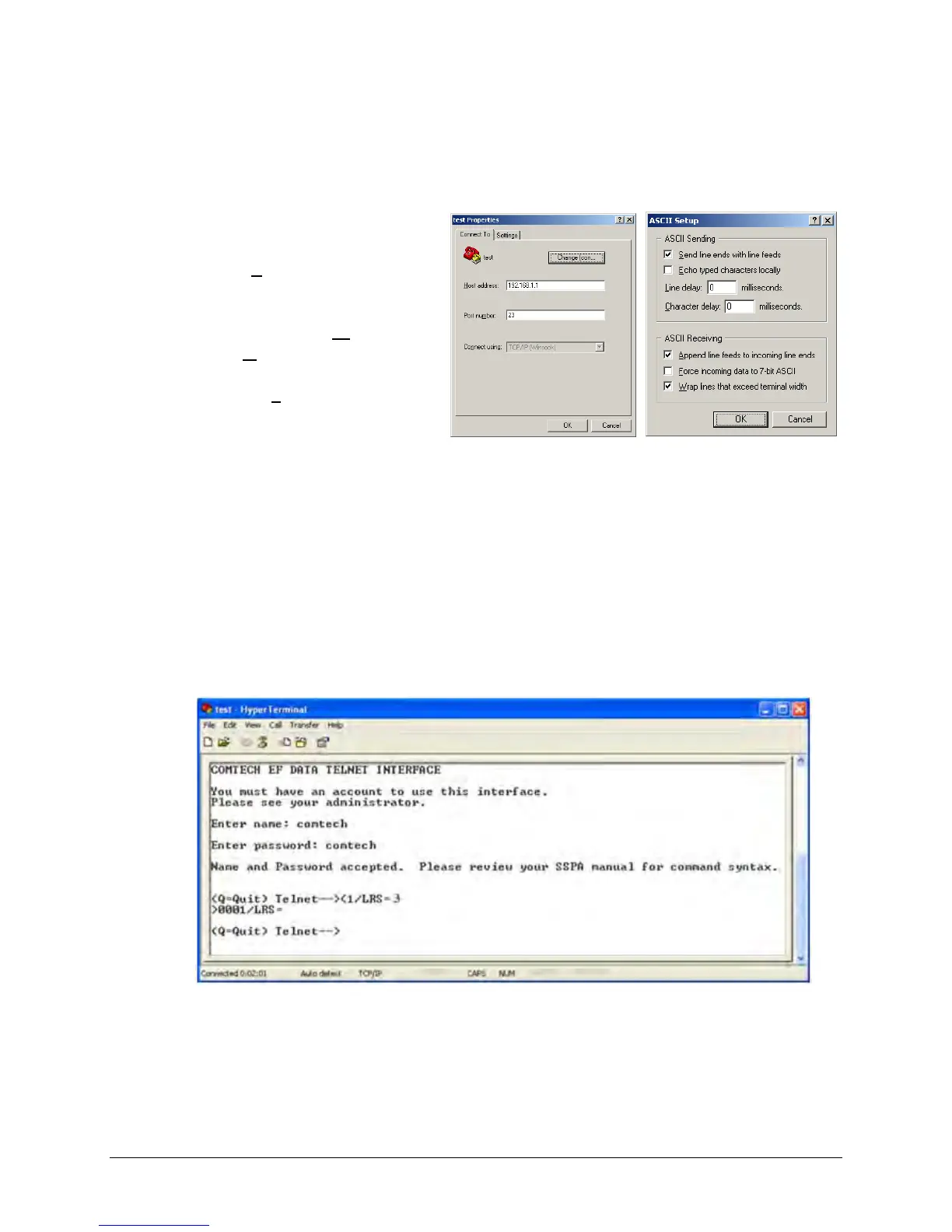

Configure HyperTerminal as follows:
1. Be sure to properly define the “Connect To” Telnet connection properties (File
Properties), as shown below at the near right:
Enter the LPOD’s
Management IP Address as
the H
ost Address (e.g.,
192.168.1.1).
Enter TCP Port 23 as the Port
num
ber.
Set Connect using to TCP/IP
(Winsock) instead of COM1
or COM2.
2. For ASCII Setup (File Properties Settings ASCII Setup), as shown above at the far
right:
A) Check the "Send line ends with line feeds" option in the ASCII Sending section.
B) Check the "Append line feeds to incoming line ends" option in the ASCII Receiving
section.
An example of login and remote command/query execution, when using HyperTerminal as the
interface, appears as follows:
