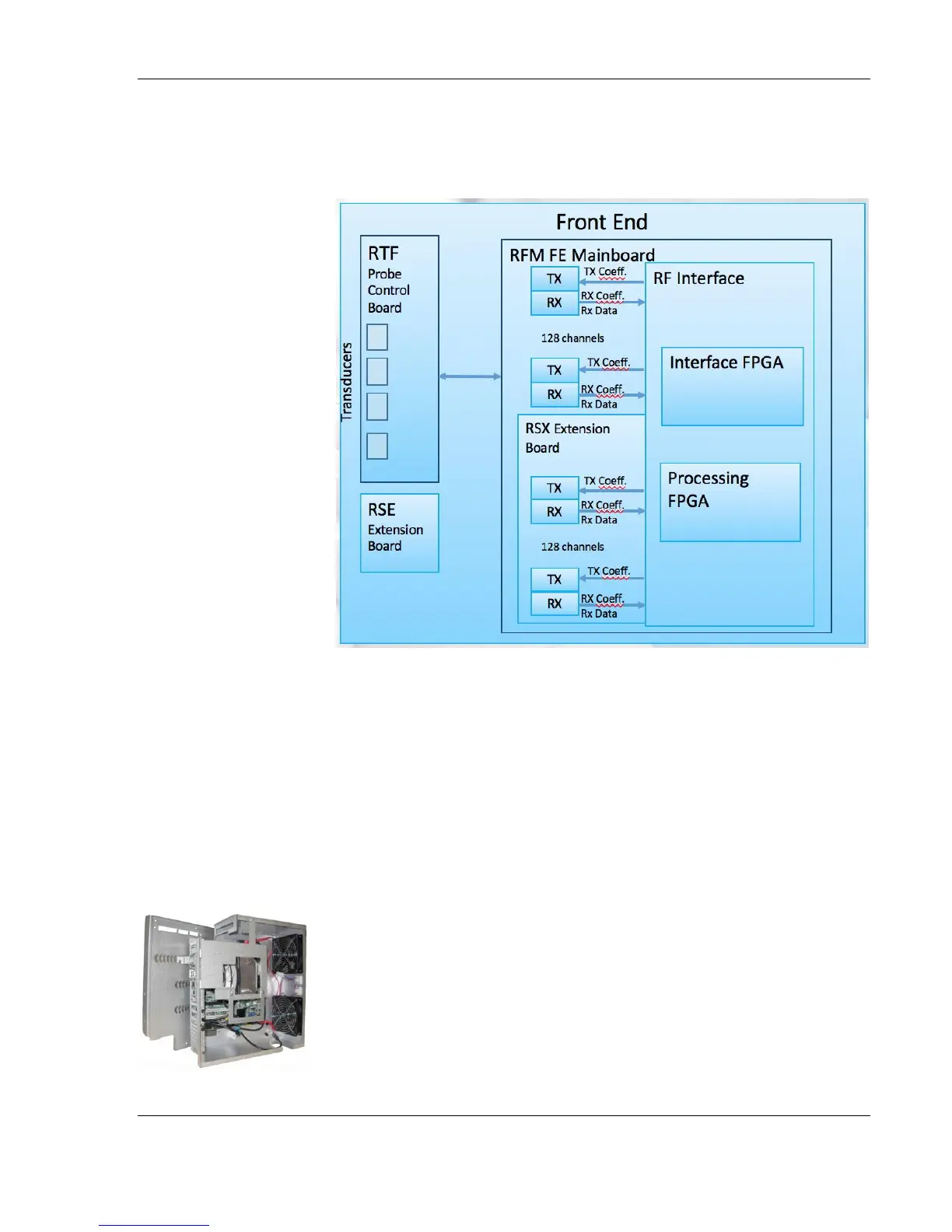

components of RSX board are also present on RFM - (RF-Interface &
Beamformer) FE Mainboard.
System Backend Components
This section describes the System Back End topics for the GE Voluson
E10. The back end includes system blocks/components on the user
interface side that perform functions such as master controller, signal
processing, image memory, video layout, peripherals and user
interface.
Back End Processor (BEP)
The Back End Processor (BEP) unit receives the data from the FEP
electronics, stores it in memory, performs scan conversion to the
pixel domain, and drives the system’s monitors.
Contains the HDD that holds the Base Image (Windows 7) and
Application Software (System Specific). The BEP software also
processes the Color Flow, Doppler, M-Mode data and the 3D/4D data.
