Conquest Imaging GE Voluson E10 - PC-Motherboard

GE Voluson E10 Training Manual
© 2017 Conquest Imaging
8
PC-Motherboard
The major tasks of the motherboard are system control and image
processing/rendering for 2D/3D/4D. It also provides control for the
DVD drive and User Interface (UI) via USB connections. There are four
motherboard configurations for the Voluson E10:
 ADVANTECH Micro-ATX + RTT/RTH6x
 ADVANTECH Micro-ATX + RTH50
 KONTRON Flex-ATX + RTT/RTH6x
 KONTRON Flex-ATX + RTH50
Built in or external Components:

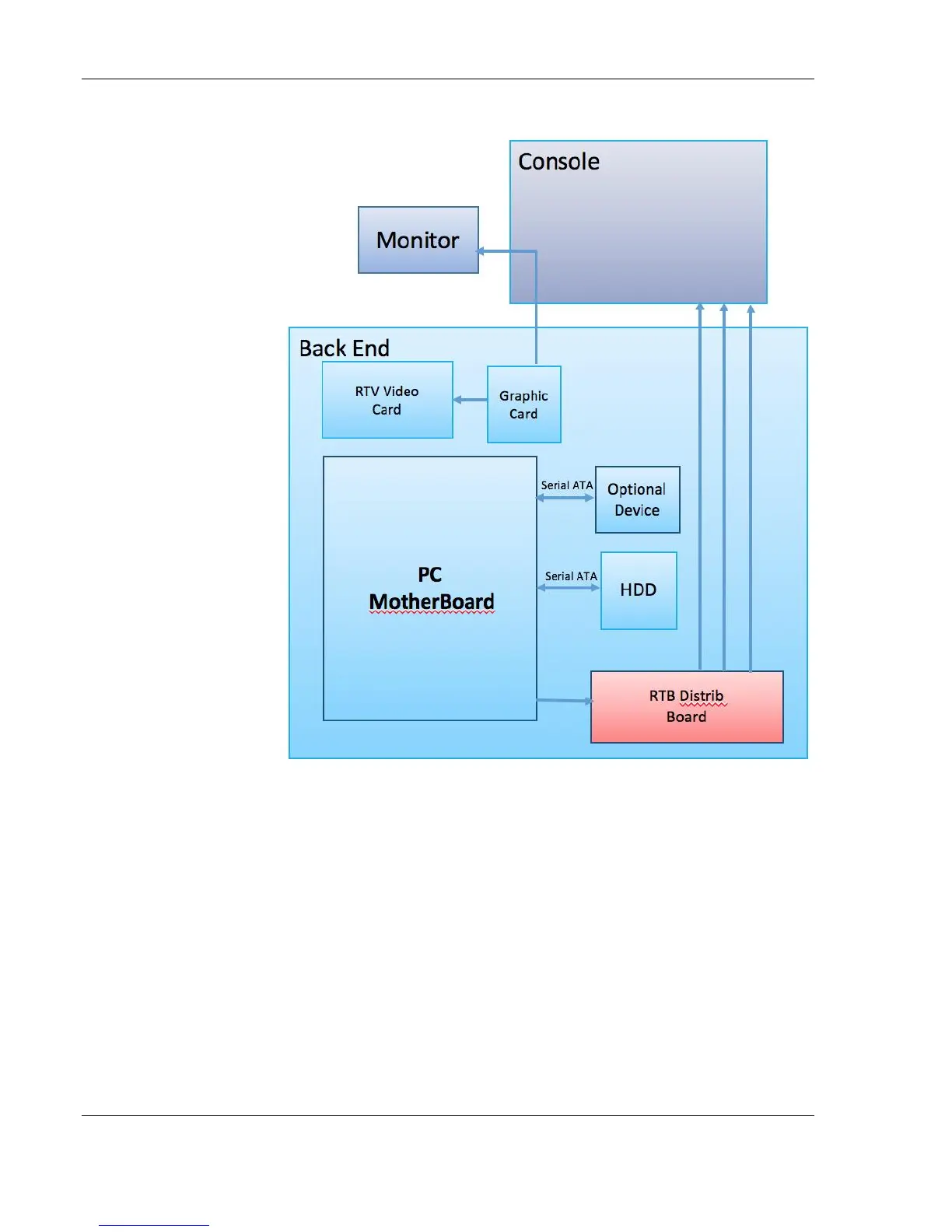

Back End Block
Diagram
