In addition, the AC/DC device contains the digital motor amplifier.
Input Voltage Range: 100 - 240VAC; 50/60Hz
Auxiliary Output Voltage nominal 115VAC
All DC-supply voltages for built-in peripherals are also generated in
the RSP- Power Supply Module.

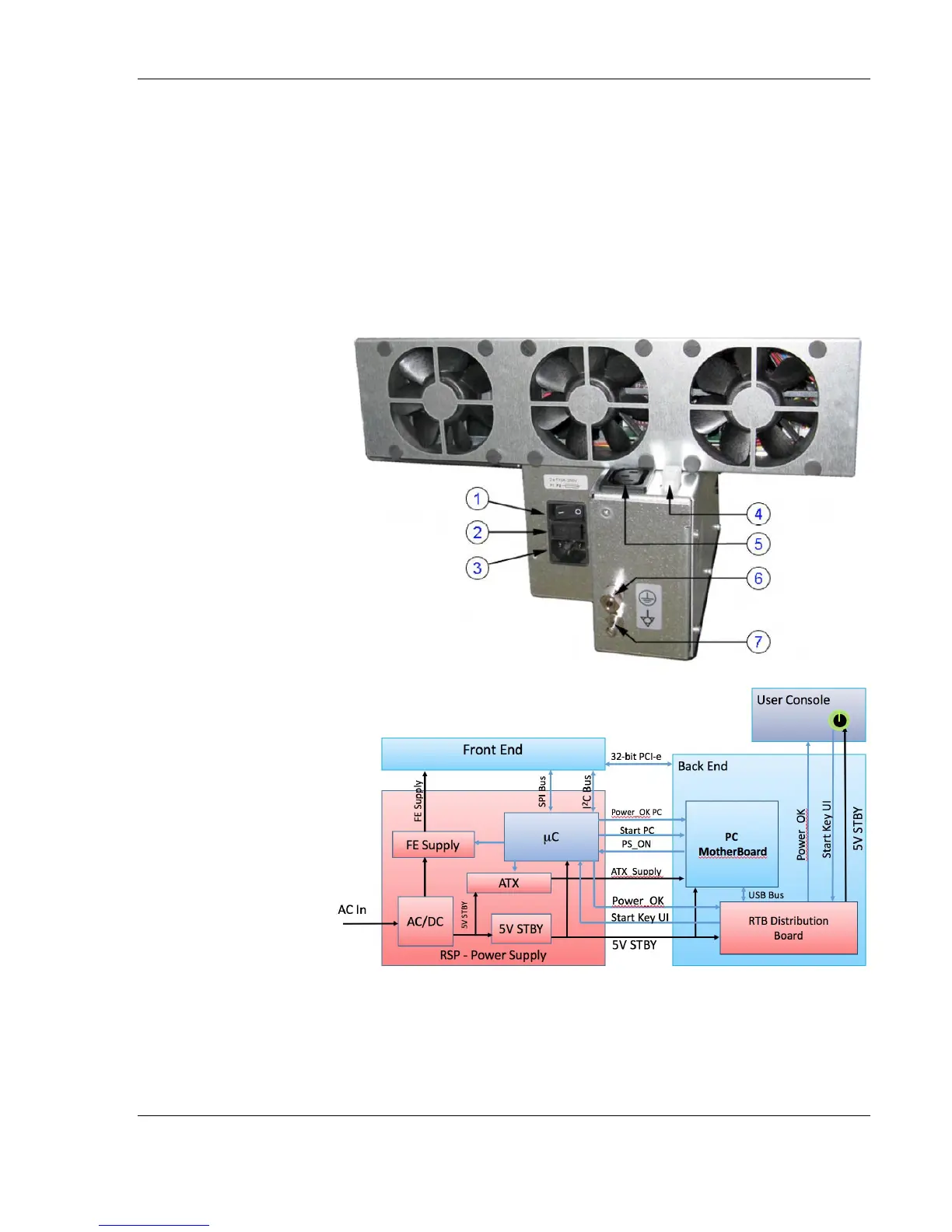

1 Circuit Breaker
2 Fuses (2x T10A H/250V)
3 connector for Main
Power Cable
4 Lift system (12VDC)
5 Auxiliary Output
6 Protective Earth
connection
7 Equipotential
connection
Power Supply
Block Diagram
To Next Page
