GE Voluson E10 Training Manual
© 2017 Conquest Imaging
Graphic Card
The graphic Card supplies the RTV (Video manager) board with DVI
Video. It offers dynamic contrast enhancement and color stretch
video processing.
RTV - Video Management Board
Distributes DVI-D-information coming from the Graphic Card to the
DVI-D (digital) and DVI-I (integrated) connectors. It also converts DVI-
D-inputs to S-Video output(s). Displays external playback video and
adds overlay graphics to it.
DVI-D output for the System Main Monitor
DVI-I output for external device (only RGB signals used)
S-Video output (2 channels)
S-Video input for external devices
USB connector for board configuration

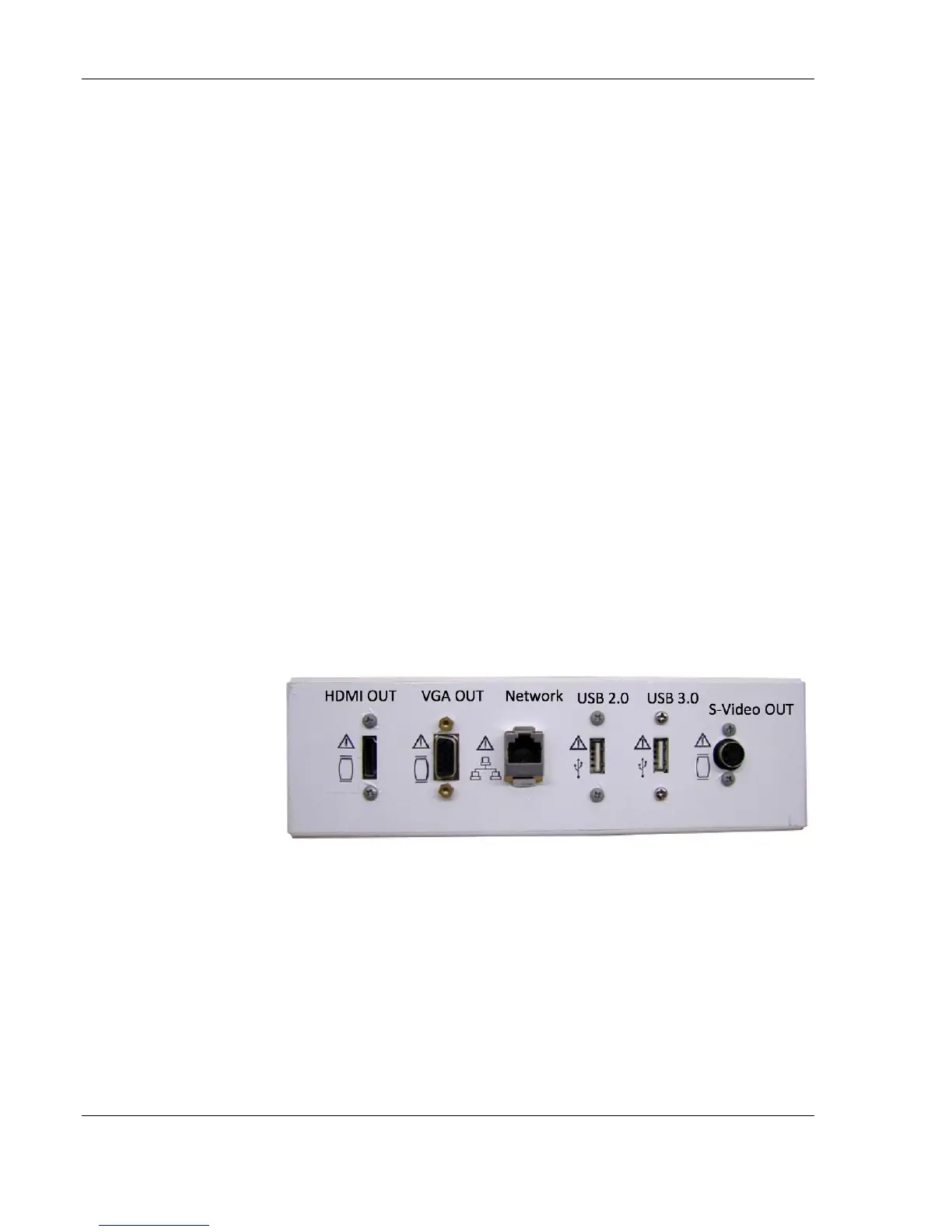

External I/O Connection Panel
The GES30 external I/O connection Panel is found at the rear of the
system and includes VGA, USB, Network and S-Video cables to the
Voluson E-Series system.
HDMI OUT Connector for external monitor
VGA OUT Connector for external monitor
USB 3.0 port
USB 2.0 port
S-Video OUT S-Video OUT connector
Network DICOM input/output, twisted pair RJ-45 10/100
megabit/s
