GE Voluson E10 Training Manual
© 2017 Conquest Imaging
The audio system is used for:
Audio Doppler operation
Audio playback of recorded scan sessions
Audio error notification.

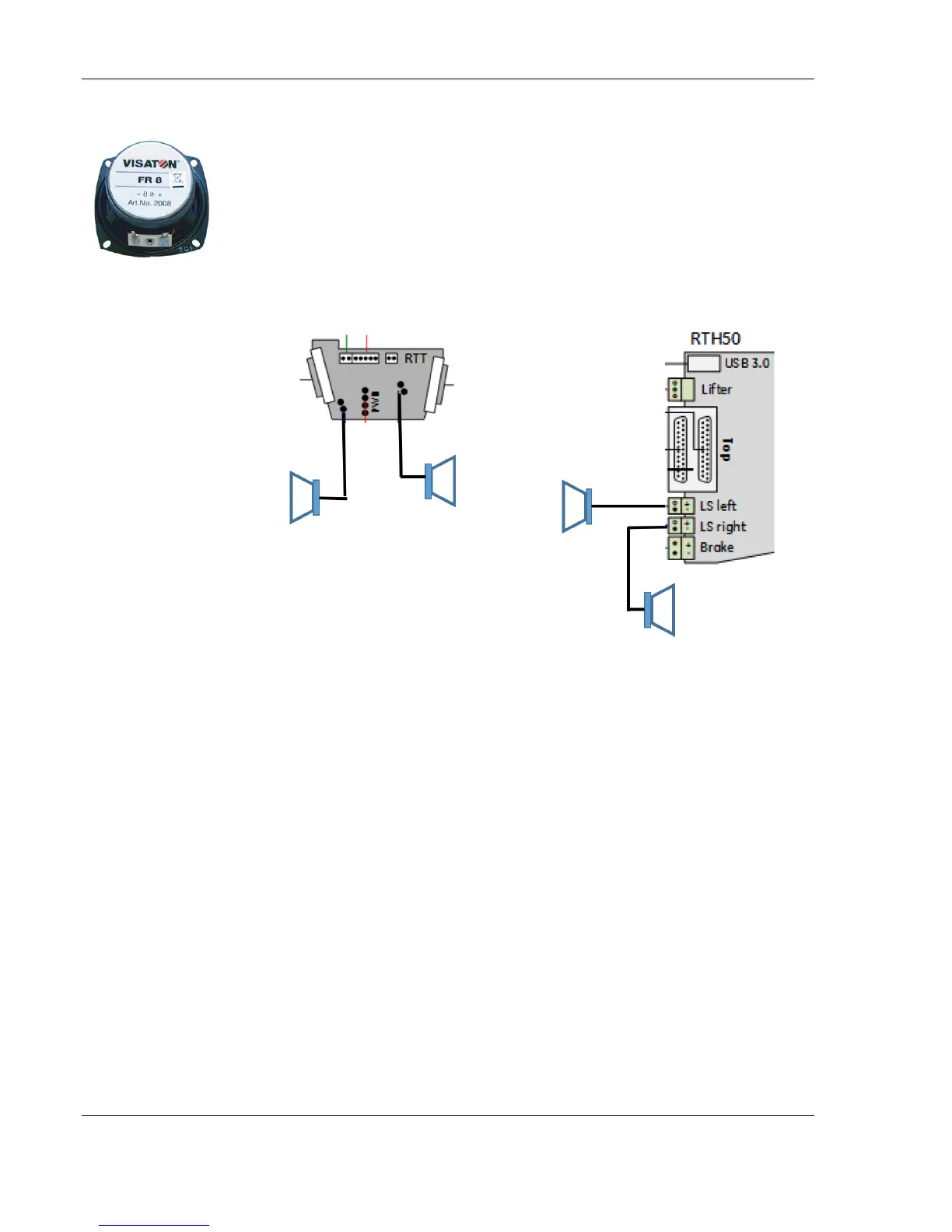

The audio signal is passed to the speakers from either the RTH50
board or the RTT board depending on the version of the system.
Power Distribution Components
The power distribution components in Voluson E10 systems are
described in this section.
Main Power Supply (RSP)
The AC Power's main tasks are to supply the various internal
subsystems with AC power and to galvanically isolate the system from
the on site Mains Power System. To reduce inrush current, an inrush
current limiter is implemented. From the input voltage from the
Power Supply (RSP) the AC/DC converter generates all system supply
voltages, which include the:
Front End voltages
Standby voltages
ATX motherboard supply
Tx voltages
