Front Panel

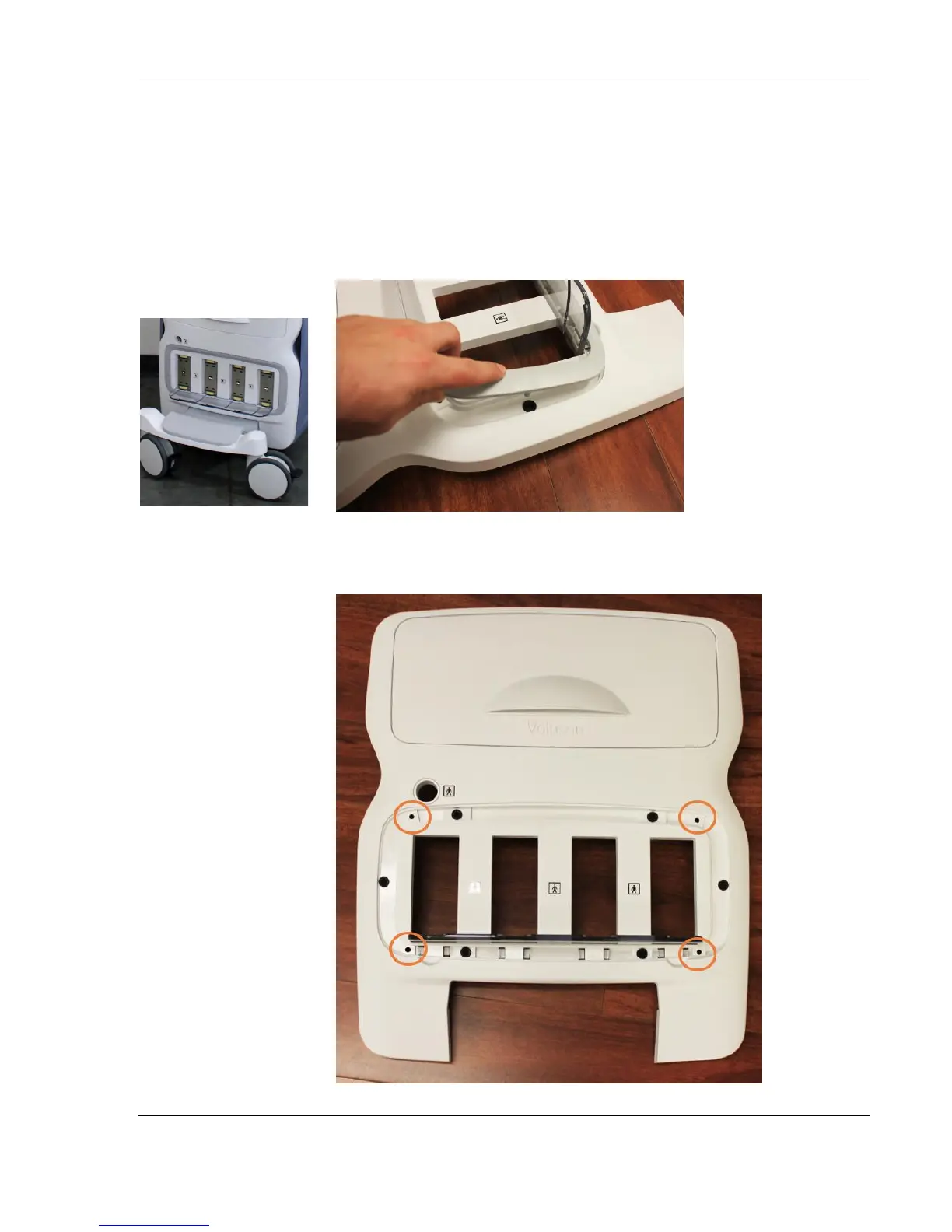

To remove the front panel from the console:
 Gently remove the strip from around the probe openings on the
front panel while the panel is still affixed to the console.
 Remove the four screws from the holes shown below and lift out
the panel.
Remove Plastic Strip
Front Panel Screw
Locations
