User's Manual
7

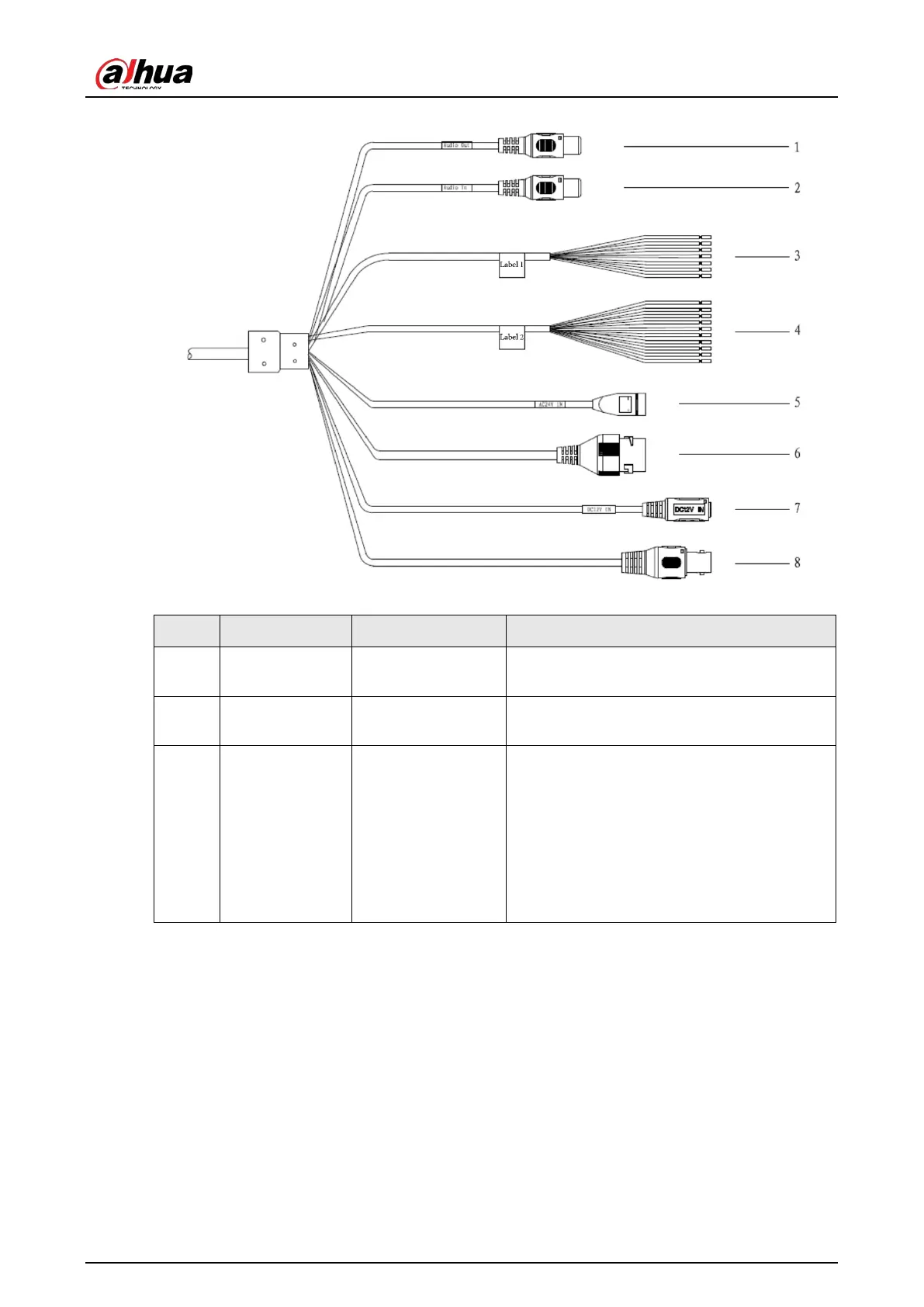

Figure 2-9 Cable connection
Table 2-4 Cable connection
No. Port Function Description
1 AUDIO OUT Audio output port
The Camera sends out audio signal through
this port.
2 AUDIO IN Audio input port
The Camera gets audio signal through this
port.
3 RS-485/RS-232 RS-485/RS-232 port
●
White & Red: RS-485_A1
●
White & Orange: RS-485_B1
●
Yellow & Green: RS-485_A2
●
Yellow & Black: RS-485_B2
●
White & Yellow: RS-232_RXD
●
White & Brown: RS-232_TXD
●
White & Black: GND
