Dedicated Electronic Constant
and Bypass Electronic Constant

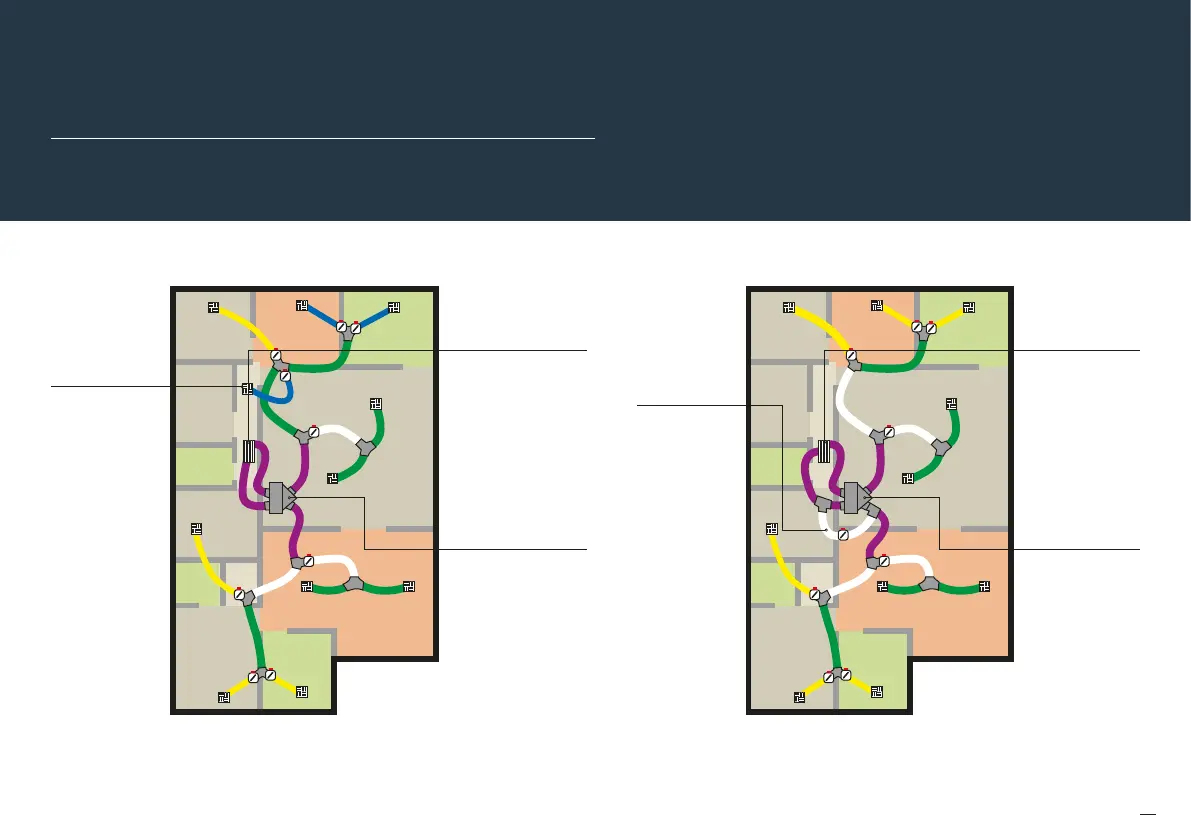

Fig C04 – Bypass Electronic ConstantFig C03 – Dedicated Electronic Constant
Ensure doors
are let open
if there is no
return air grille
in the zone
Use an unoccupied
area as the
dedicated Electronic
Constant zone. Can
be let in the closed
position.
For most accurate control when using
individual zone temperature control.
Set A/C unit to control from “Zones”.
For most accurate control when using
individual zone temperature control.
Set A/C unit to control from “Zones”.
Bypass supply
air into return air
duct. Electronic
constant zone
must be let in the
Closed position.
Ensure doors
are let open
if there is no
return air grille
in the zone
Supply air sensor
installed here
Supply air sensor
installed here
