Daikin Myzone 3 - Myzone Wiring Connections to Toshiba Units

37
31. Unit make:
32. Toshiba
33. RAV-SM###3DT
(A Series Only)
Myzone Wiring
Connections to
Toshiba Units
Connection
Connect a shielded, 2 core, twisted pair control cable from the
C225/C325T to the A/B in the fan coil unit. Polarity is critical
see Fig (i) & (n) below, for correct connection.

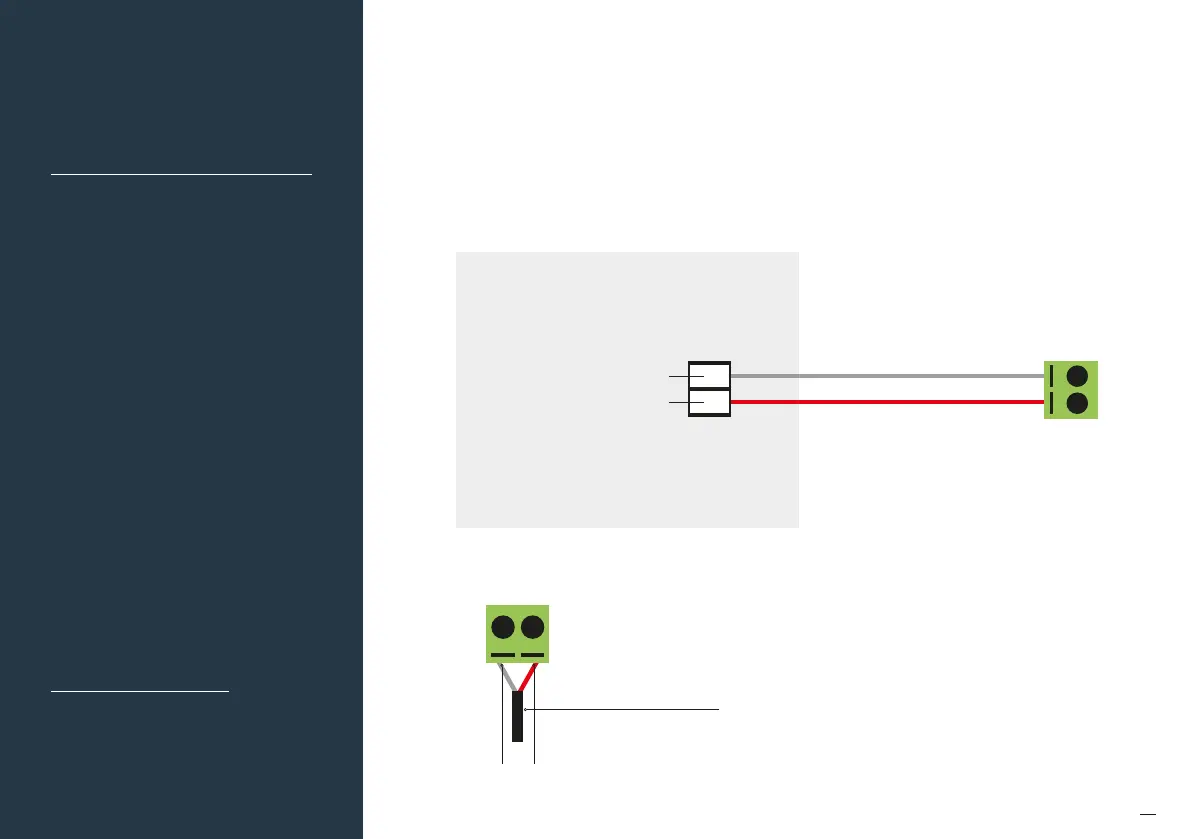

F
ig (i) – Indoor fan coil unit terminals
A
B
A
B
Indoor PCB
Fig (n) – Myzone C225/C325T
Correct polarity
Shielded, 2 core, twisted
pair, control cable
(not supplied)
2
3
A
B
Myzone 3
CPU
