Daikin Myzone 3 - Stage Reverse Cycle Heat Pump + Aux Heating + 1 X Fan Speed

56
Myzone Wiring Connections
to Universal Control Module
1 Stage Reverse Cycle Heat Pump + Aux Heating +
1 x Fan Speed
Congure required functionality via touch screen as follows:
Go to Cong > AC Unit Setup > Next > press edit pencil > Select:
1 Stage R/C + Aux Heating + 1 x Fan Speed.
Press Next > Next.
Adjust Minimum run time and Anti-cycle time as required.
Setup Fan control.

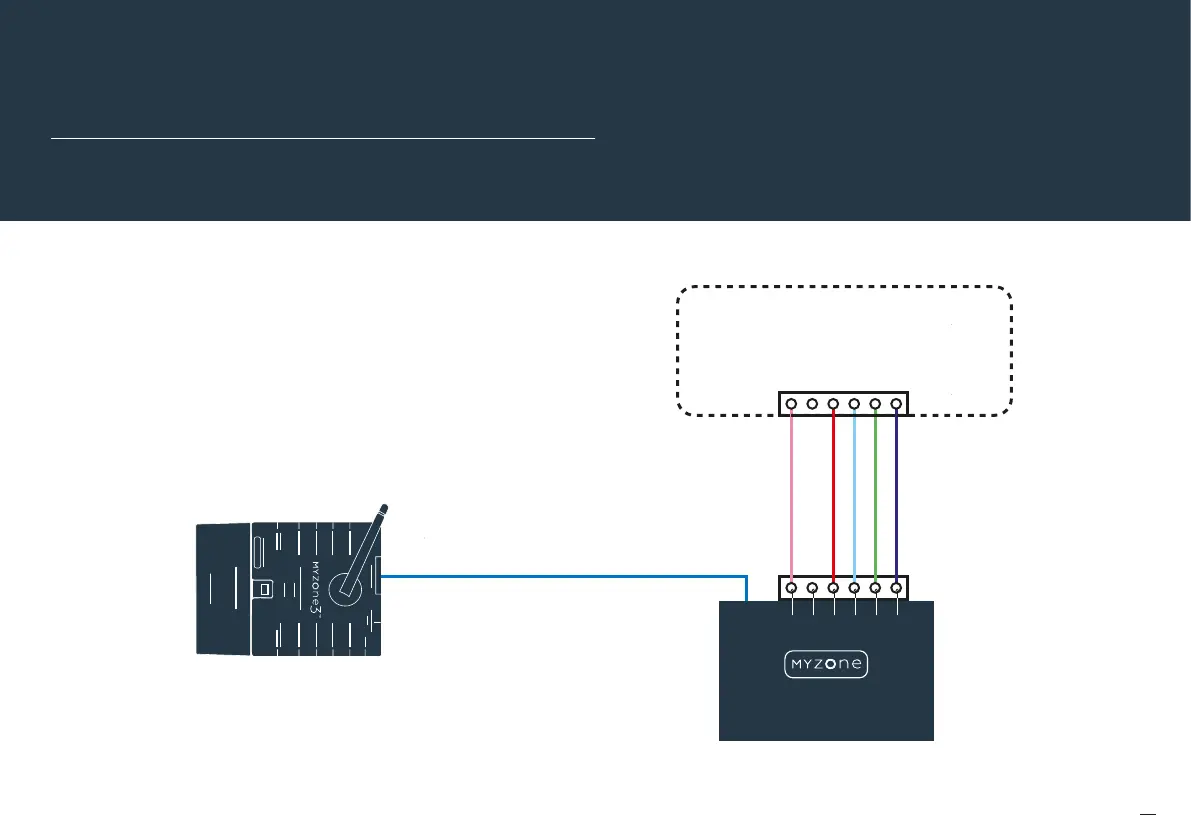

Equipment
CFC1
24V Maximum
Aux Heat
R/Valve
Comp
Fan
COM
Field wiring by
installer
myZone.net
Universal Control Module
CUCM
E
C C
B
A
COM
