R/Air Zones
RF Sensor
Auto fan speed adjustment
based on damper positions
Constant Control
Unit will switch off automatically
if all the zones are closed
Dead band 1.75 deg C
Master
AC Unit Setup
AC Unit Controlling Sensor
Fan Auto
Unit Auto Off
Auto Mode Dead Band
Back
71
A/C Unit
Configuration

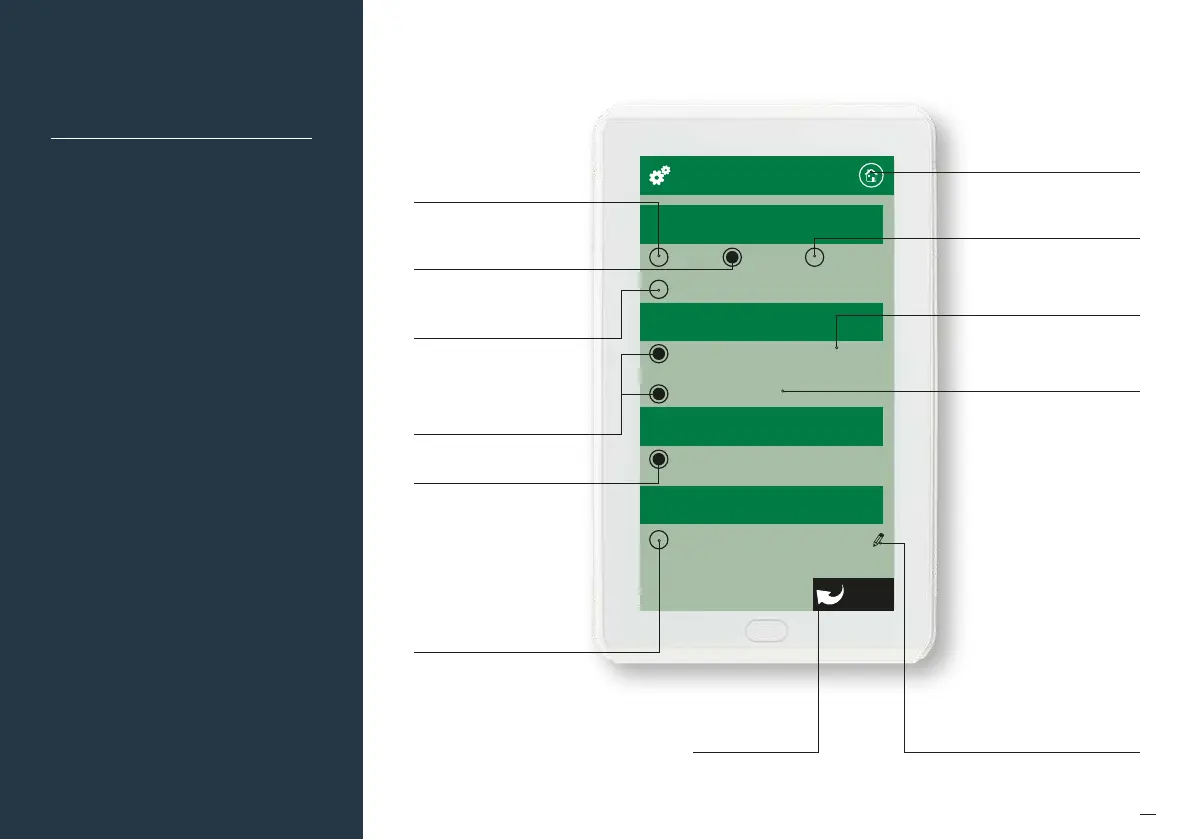

Select the Method of
Controlling the AC Unit
Touch here to go to the
home screen
R/Air will control the A/C
using the unit's return
air sensor
Zones will control the A/C unit
from the zone that's actual
temperature is furthest from the
desired set temperature
Master will control the A/C
unit from an assigned touch
screen or zone sensor
Touch here to adjust
the deadband
RF Sensor is selected if
you are controlling an A/C
unit with no zones from
a single RF sensor. The RF
sensor dial must be set to
(F) or (R)
To configure Fan Auto (see page 67)
Touch here to enable/
disable these features
Touch here to enable/
disable this feature. NOTE:
This will shut down both
outdoor and indoor unit
when all zones are closed.
Opening a zone will not
turn the unit back on, unit
will need to be turned
back on using the
on/o button.
Indicates the current
dead band required to
automatically switch from
Cooling to Heating. This
dead band/-1.75 deg.
C from the controlling
sensor's set point.
Touch here to go back
and save the changes
Advanced constant control will use
area (m) in lieu of % of total zones
open to control the constant zone
or bypass damper. NOTE: all room
areas must be entered accurately
for this to function correctly. If
the zone areas total 50m and the
equivalent of 25m of zones are
open, with a minimum area to be
covered of 35m, then the constant
or bypass will open in % to the
equivalent of 10m.
E.g. Zone 1 Area = 13m @20% Open
Zone 2 Area = 12m @30% Open
Constant or Bypass = 10m @15%
Open
