Daikin Myzone 3 - A;C Unit Control & Modulating Zone Control with Wired Zone Temperature Controllers (Wi-Fi Optional)

22

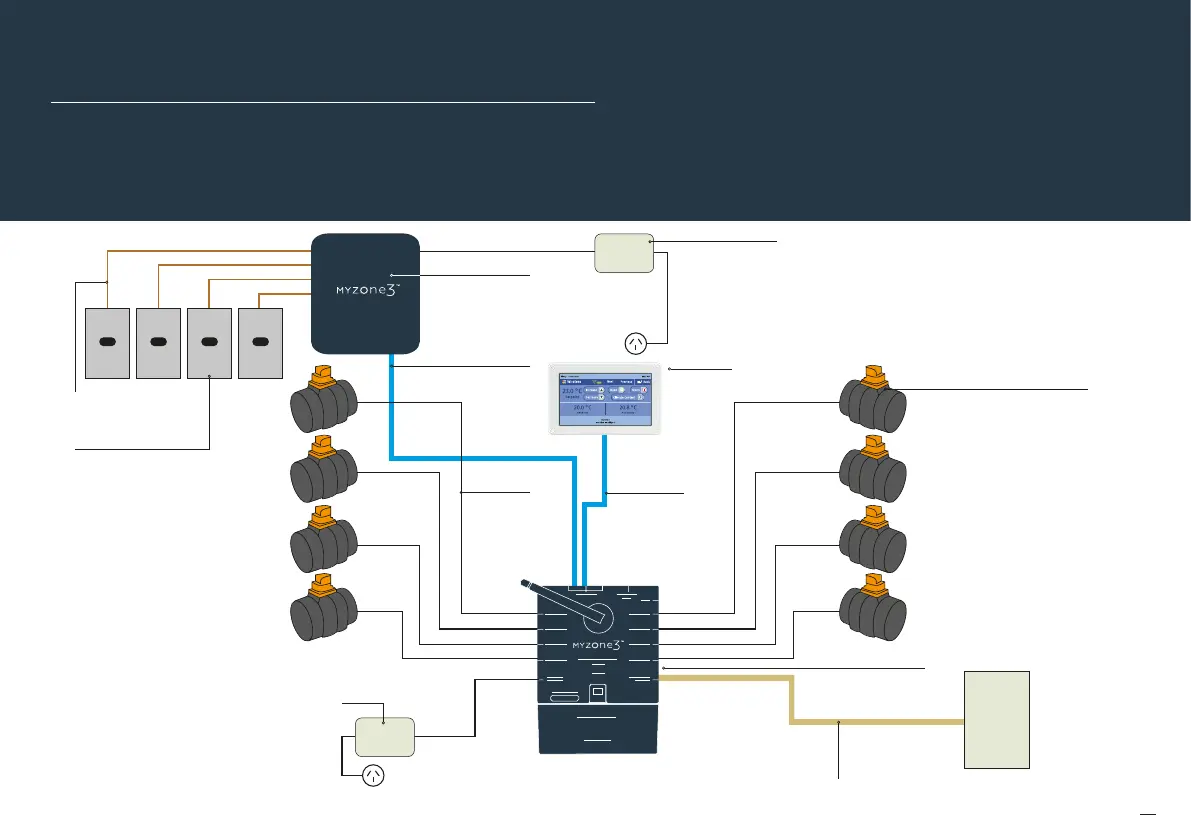

Myzone Wiring Layout
A/C Unit Control & Modulating Zone Control with
Wired Zone Temperature Controllers (Wi-Fi Optional)
240V/24V
A/C Unit
Zone 7
Zone 5
Zone 3
Zone 1
Zone 8
Zone 6
Zone 4
Zone 2
RJ12 Cable
(1609219)
240V/24V Transformer
(3205599)
Twin-Shielded
Cable
Myzone 3 CPU
(3205598)
RJ45 Cable
(3205601)
Zoneboss
Zone Motor
240V/24V
RJ45 Cable
(3205615)
RJ12 Cable
(1609219)
240V/24V
Transformer
(3205599)
Myzone 3 Wired
Zone Sensor
Module Kit
(3205615)
Myzone 3 Wired
Zone Sensor
Max 14 per system
(3205616)
Nexus Tablet
(205295)
