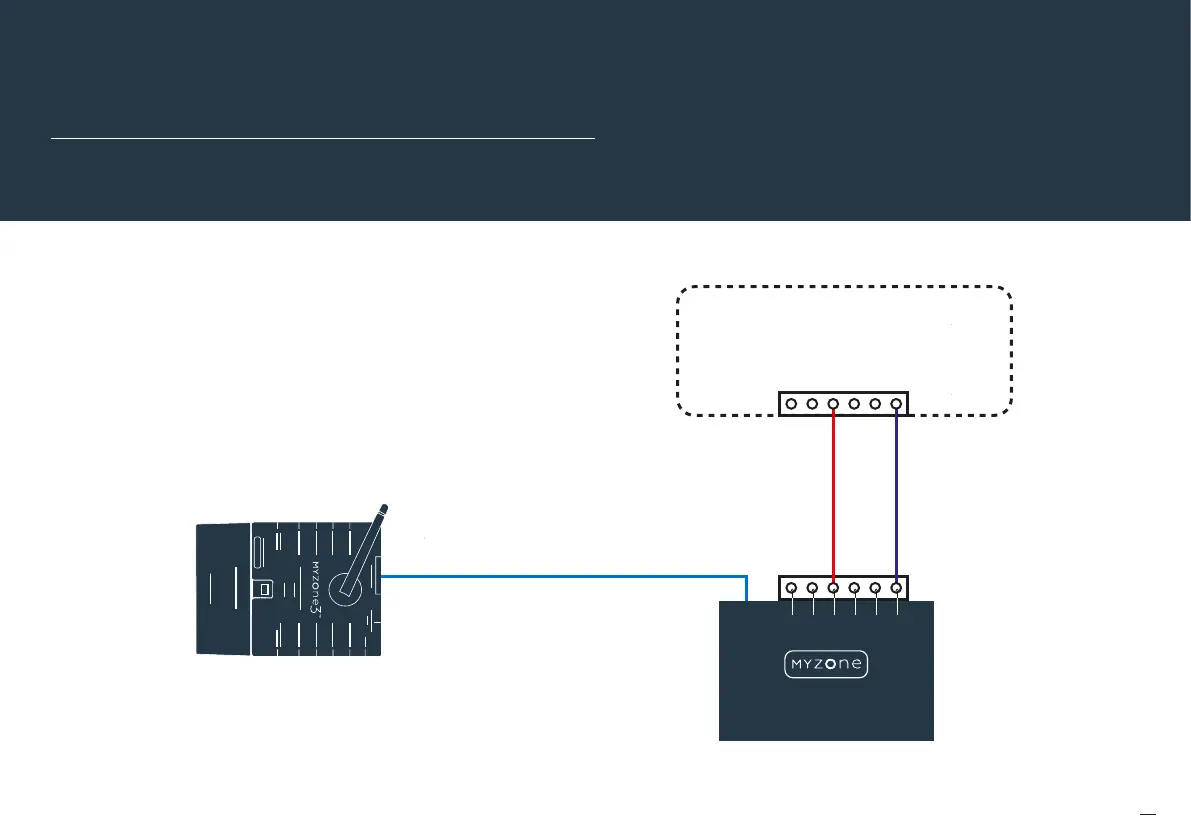

Myzone Wiring Connections

to Universal Control Module

Gas Heating Thermostat Only

Congure required functionality via touch screen as follows:

Go to Cong > AC Unit Setup > Next > press edit pencil > Select:

Gas Heating thermostat only.

Equipment

CFC1

24V Maximum

Heat

COM

Field wiring by

installer

myZone.net

Universal Control Module

CUCM

COM
