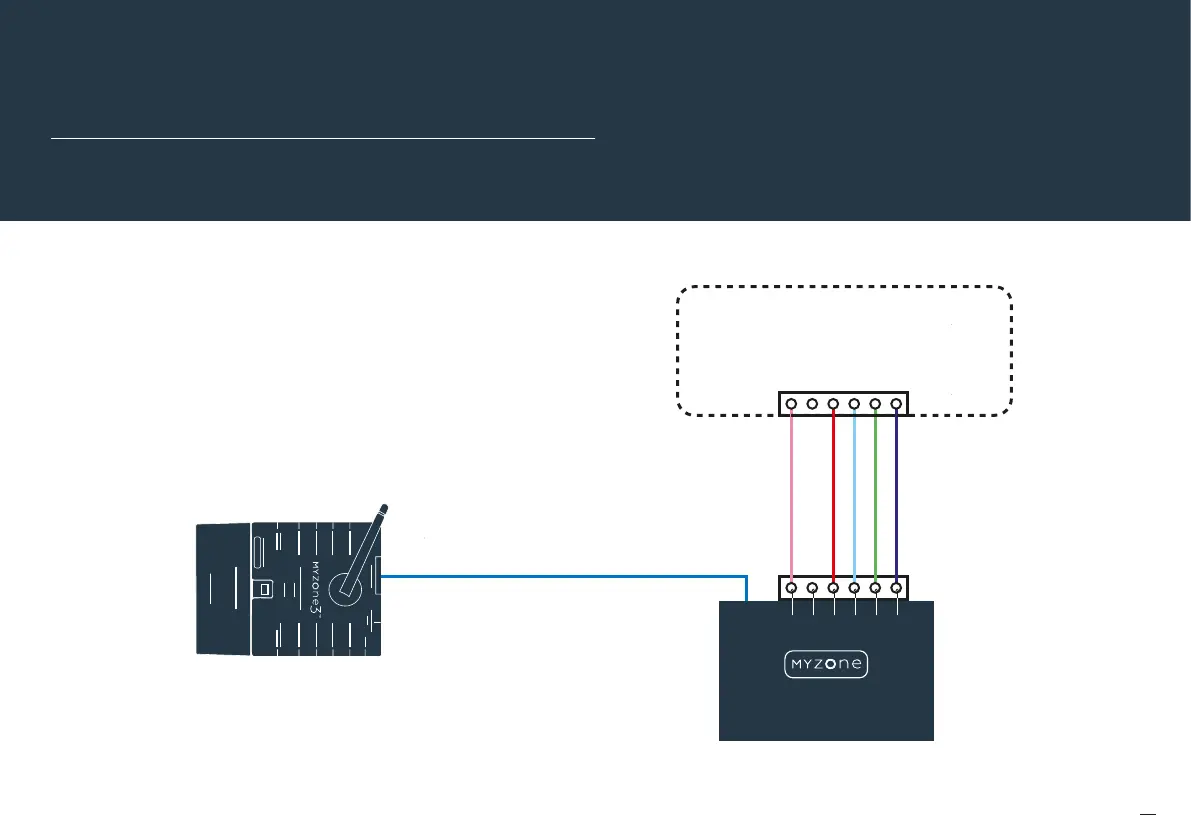

Myzone Wiring Connections

to Universal Control Module

2 Stage Gas Heating + 1 Stage Cooling + 1 x Fan Speed

Congure required functionality via touch screen as follows:

Go to Cong > AC Unit Setup > Next > press edit pencil > Select:

2 Stage Gas Heat + 1 Stage Cool + 1 x Fan Speed.

Press Next > Next.

Adjust Minimum run time and Anti-cycle time as required.

Setup Fan control.

Equipment

CFC1

24V Maximum

Heat 2

Heat 1

Cool

Fan

COM

Field wiring by

installer

myZone.net

Universal Control Module

CUCM

COM
