Daikin Myzone 3 - Myzone Wiring Connections to Daikin Units

34
22. Unit make:
23. Daikin
24. Any Daikin Unit
with a P1/P2
connection
Myzone Wiring
Connections to
Daikin Units
Connection

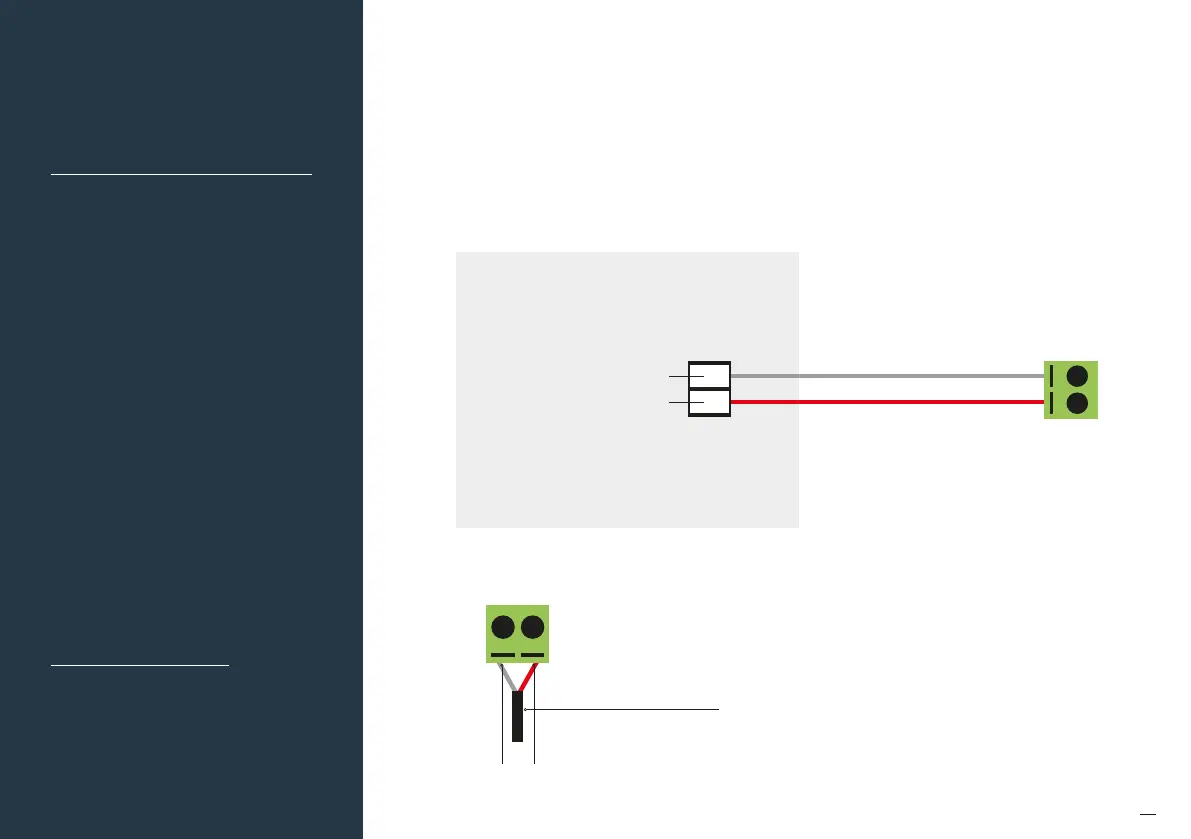

Connect a shielded, 2 core, twisted pair control cable from the
C225/C325D to the P1/P2 in the fan coil unit. Polarity is critical
see Fig (i) & (n) below, for correct connection.
Fig (i) – Indoor fan coil unit terminals
P1
P2
P1
P2
Indoor PCB
Fig (n) – Myzone C225/C325D
Correct polarity
Shielded, 2 core, twisted
pair, control cable
(not supplied)
2
3
P1
P2
Myzone 3
CPU
