Living 33
Kitchen 10
Master Bed 21
Bypass 0 (20m2)
Fan Auto Config
Zone1 Area (sqm)
BackPreviousNext
Zone2 Area (sqm)
Zone3 Area (sqm)
Zone4 Area (sqm)
73

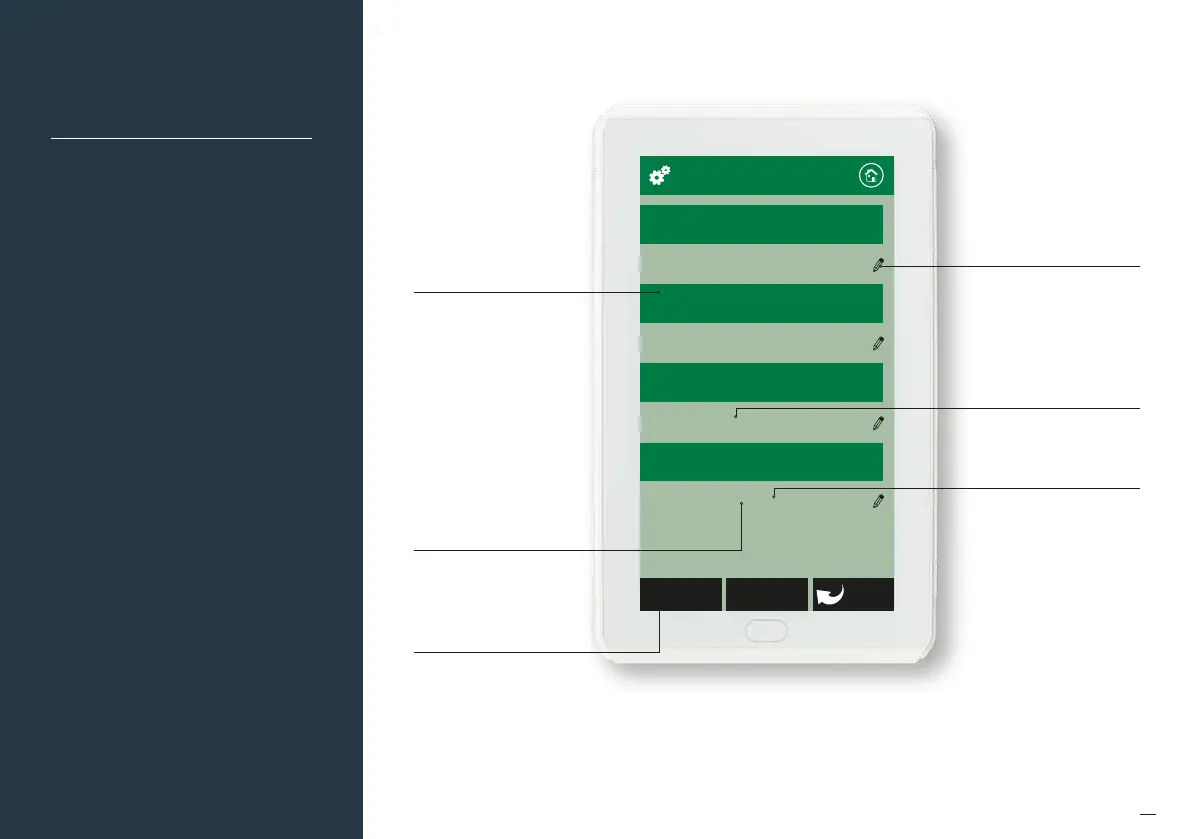

Fan Auto Zone
Area Set Up
Touch here to configure
the rest of the zone areas
(e.g.. Zone 5)
Zone name
Indicates area of Bypass
zone. Only a Bypass
zone can be set to 1m
Indicates area of Bypass
zone. Only a Bypass zone
can be set to Om.
Touch here to set the kitchen area
in square meters
Current area set for Zone 3
Constant Control (If Enabled)
shows the minimum area of zones
that must be satisfied (closed)
before the constant zone/bypass
is requested to open.
NOTE: A zone operating at e.g. 45%
open is deemed (for the systems
calculations) to be air conditioning
45% of its total set area
To Next Page
