Daikin Myzone 3 - Myzone Wiring Connections to Hitachi Units

40
Connection
Connect a shielded, 2 core, twisted pair control cable from the
C225/C325H to the A/B terminals and earth in the in the fan coil
unit. (This cable is supplied y the installer). Polarity is not critical
see Fig (h) for correct connection.
40. Unit make:
41. Hitachi
42. RPI##FSN1SQ
RPI##FSN2SQ
Myzone Wiring
Connections to
Hitachi Units

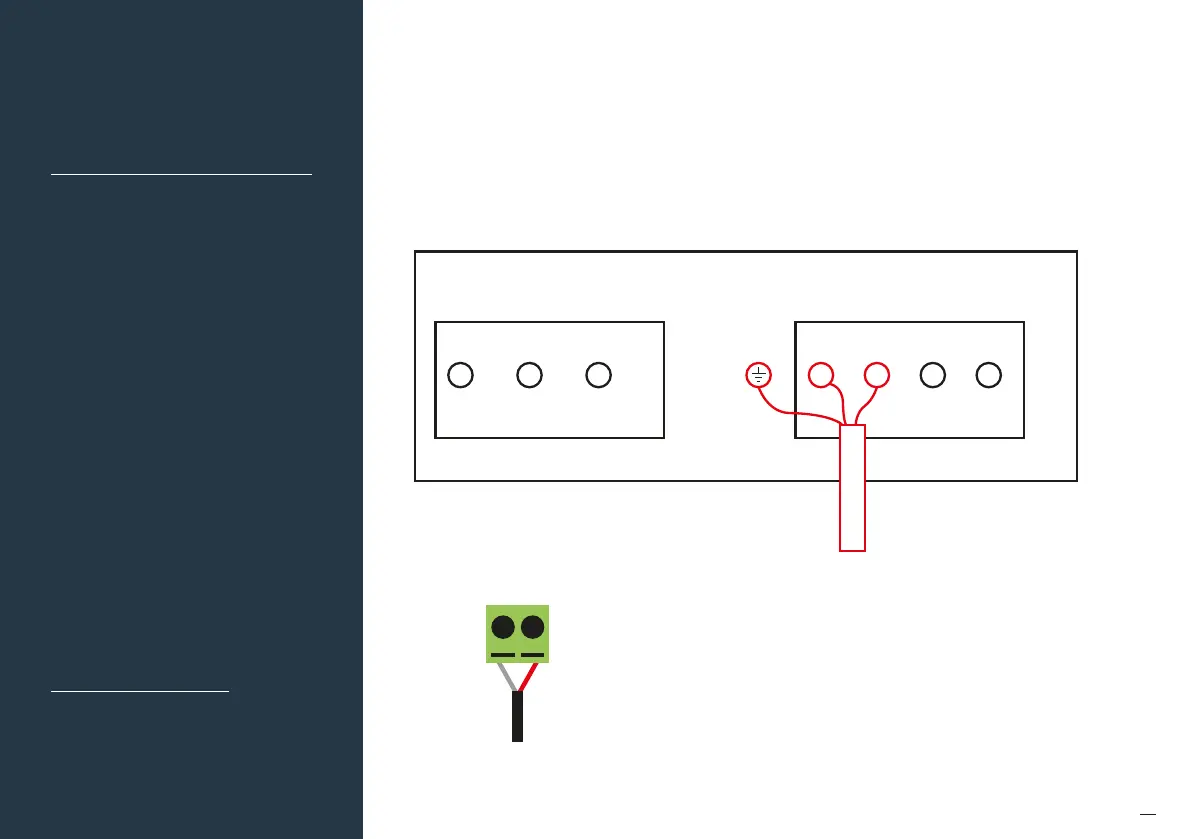

Fig (h) – Hitachi indoor fan coil unit terminals
Fig (k) – Myzone C225/C325H
L1 L2 N A B 1 2
Mp
