Daikin Myzone 3 - Myzone Wiring Connections to Panasonic Units

38
34. Unit make:
35. Panasonic
36. S###PE1R5B-S
(S Series Only)
Myzone Wiring
Connections to
Panasonic Units
Connection
Connect a shielded, 2 core, twisted pair control cable from the
C225/C325P to the R1/R2 in the fan coil unit. Polarity is critical
see Fig (i) & (n) below, for correct connection.

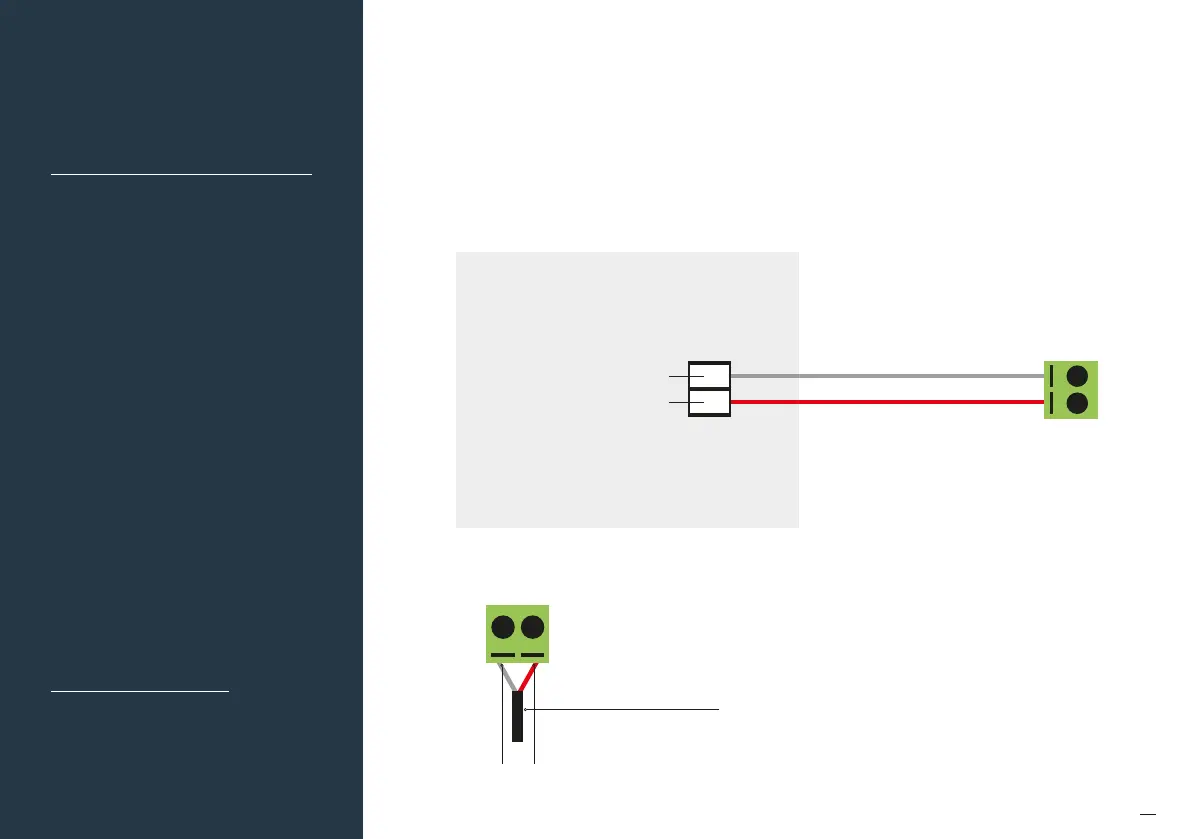

Fig (i) – Indoor fan coil unit terminals
R1
R2
R1
R2
Indoor PCB
Fig (n) – Myzone C225/C325P
Correct polarity
Shielded, 2 core, twisted
pair, control cable
(not supplied)
2
3
R1
R2
Myzone 3
CPU
