Connection
Connect a shielded, 2 core, twisted pair control cable from the
C225/C325S to the F3/F4 in the fan coil unit. (This cable is supplied
by the installer). Polarity is critical see Fig (F) and (G) below for
correct connection.
Myzone Wiring
Connections to
Samsung Units

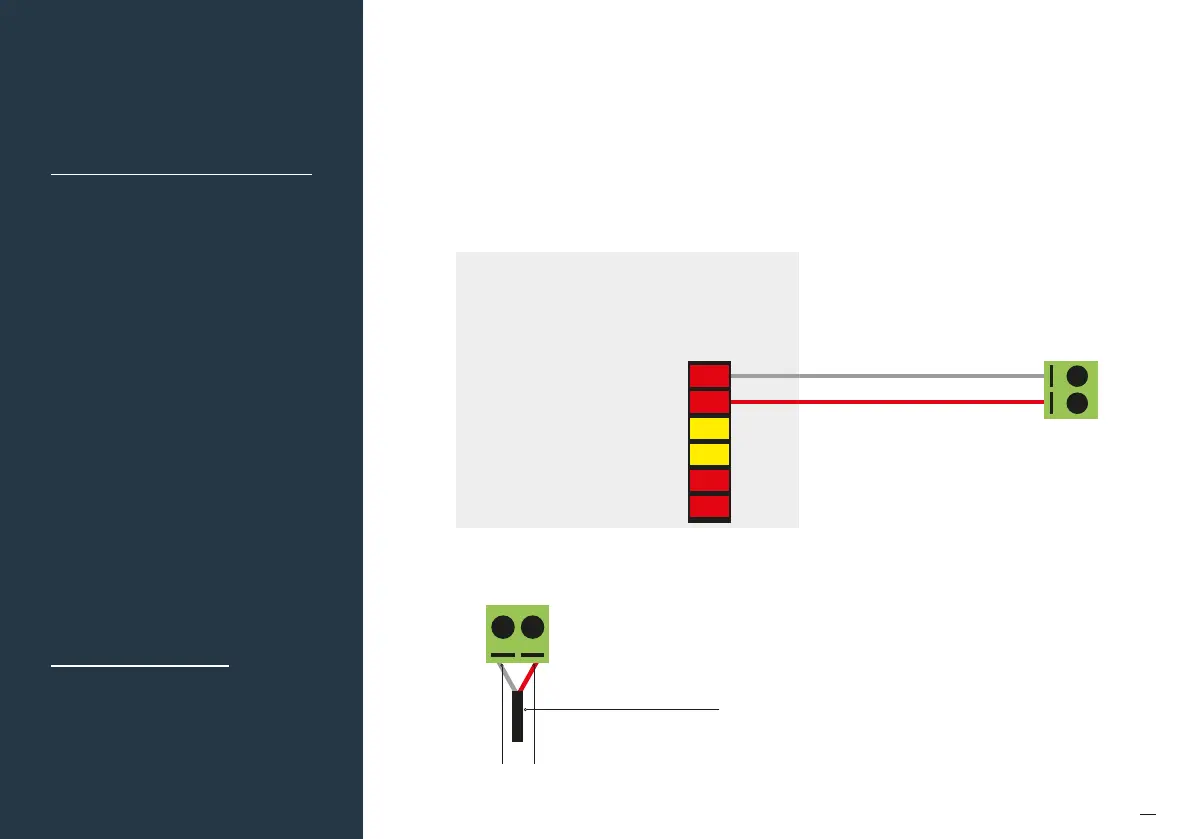

Fig (f) – Samsung indoor fan coil unit terminals
Fig (g) – Myzone C225/C325S
Correct polarity
Shielded, 2 core, twisted
pair, control cable
(not supplied)
F4
F3
F4
F3
Indoor PCB
Myzone 3
CPU
F4
F3
V2
V1
F2
F1
55. Unit make:
56. Samsung
C325S = AC Series up
to 14kw.
57. C325SN = AC Series &
AC###TNHDKG Series
