Daikin Myzone 3 - Myzone Wiring Connections to Kaden Units

41
43. Unit make:
44. Kaden
45. KD## Series
Connection

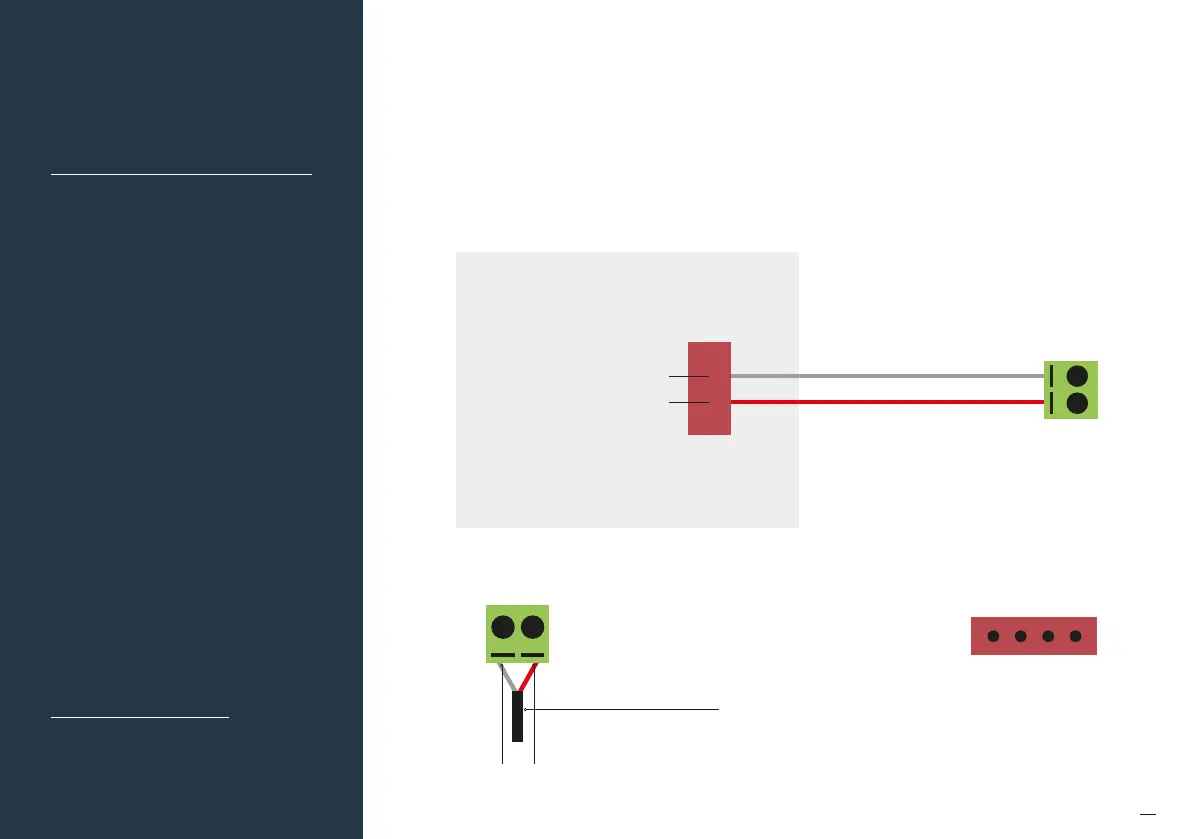

Connect a shielded, 2 core, twisted pair control cable from the
C225/C325KAD to the X/Y in the fan coil unit. (This cable and
connector is supplied by Kaden). Polarity is critical see Fig (i) (j)
and (k) below, for correct connection.
Myzone Wiring
Connections to
Kaden Units
Fig (i) – Indoor fan coil unit terminals
Fig (k) – Myzone C225/C325KAD
Correct polarity
Shielded, 2 core, twisted
pair, control cable
Y
X
Fig (i) – Indoor fan coil unit terminals
Fig (j)
X
CN40 connector pin out
Y E +12V
X
CN40
Y
X
Y
Indoor PCB
Myzone 3
CPU
