Daikin Myzone 3 - Myzone Wiring Connections to Fujitsu Units

33
19. Unit make:
20. Fujitsu
21. ARTC##LATU
ARTG
##LHTA
Myzone Wiring
Connections to
Fujitsu Units
Connection
Connect a shielded, 2 core, twisted pair control cable from
the C225/C325F2 to the 2 and 3 terminals in the Fujitsu FCU.
Polarity of this cable is critical — see Figure (m) below if polarity
is connected incorrectly simply reverse the polarity and cycle
the power to the A/C unit and the Myzone controller. Do not use
the terminal 1 (12V) when connecting to a Myzone system.

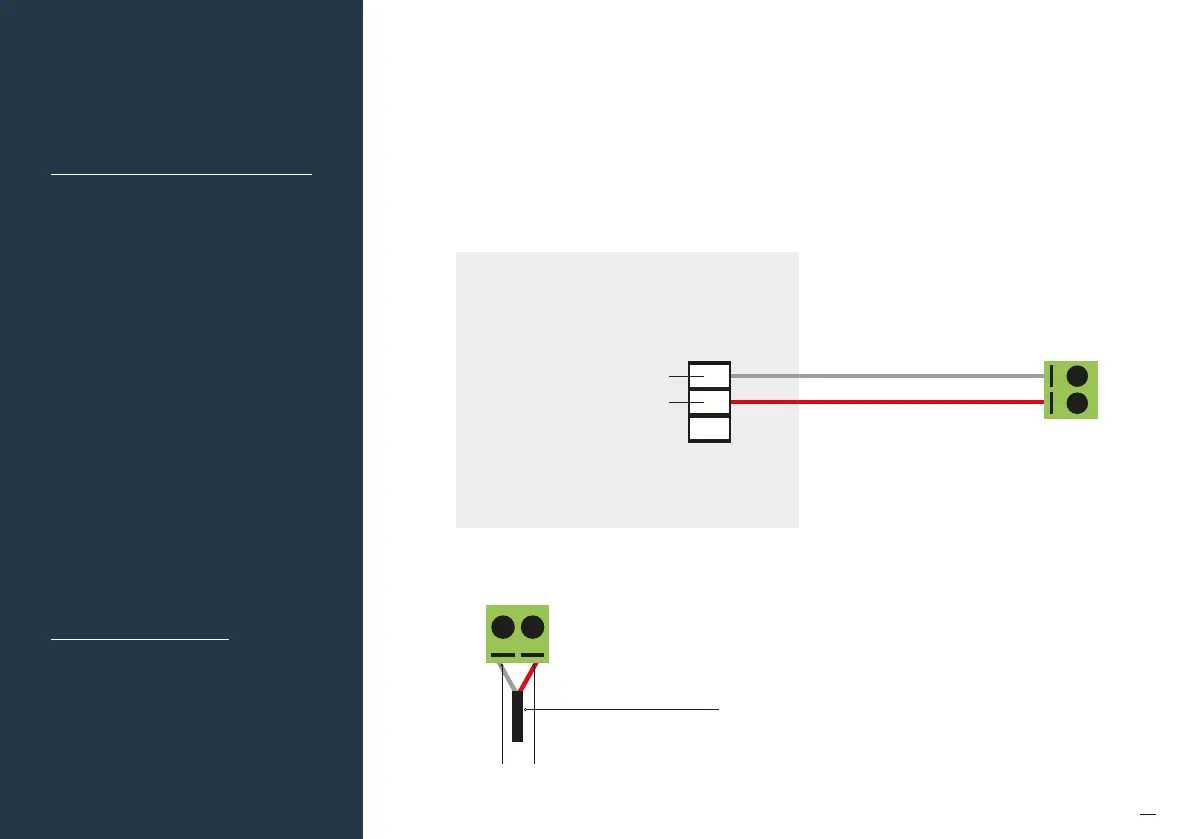

Fig (m) – Fujitsu FCU board
3
2
3
2
Indoor PCB
Fig (n) – Myzone C225/C325F2
Correct polarity
Shielded, 2 core, twisted
pair, control cable
(not supplied)
2
3
3
2
Myzone 3
CPU
