32
16. Unit make:
17. Braemar (SDHV series
inverter ducted, single
phase units only)
18. Gree (GFH inverter
ducted, single phase
units only)

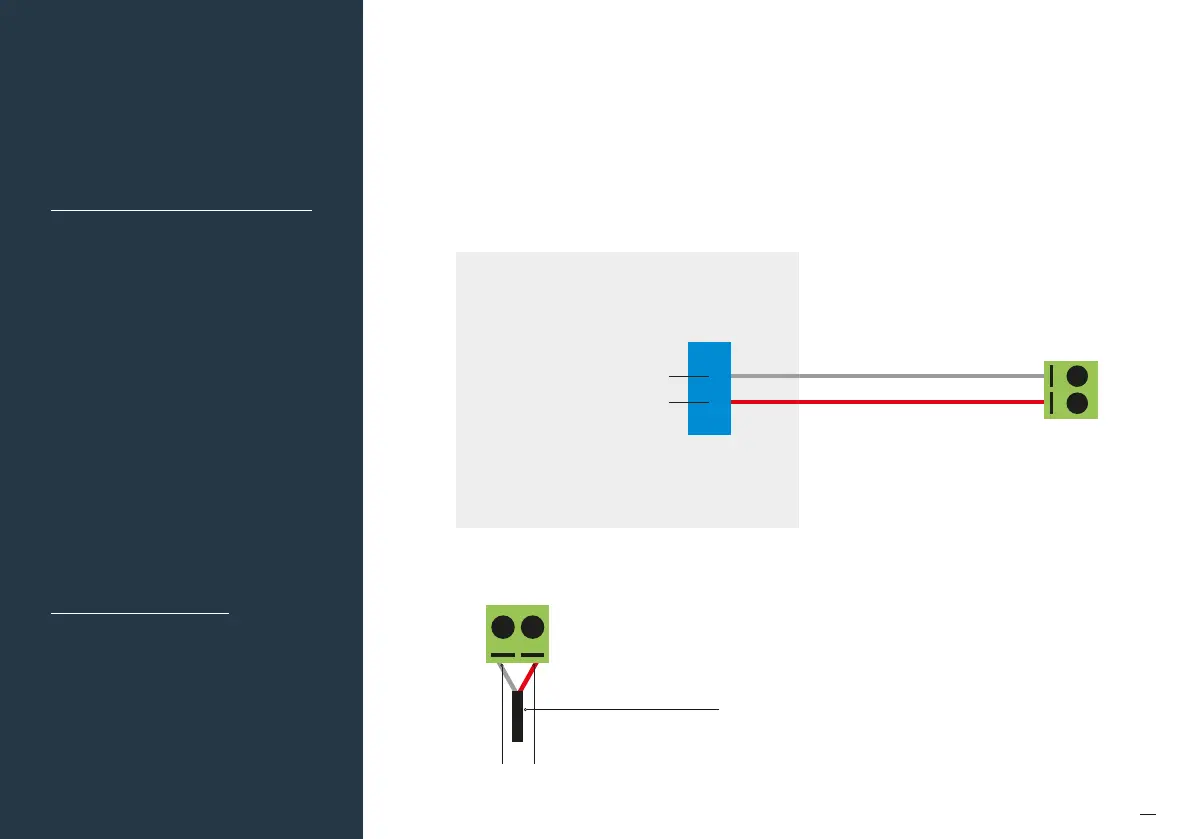

Myzone Wiring
Connections to
Braemar and
Gree Units
Fig (i) – Indoor fan coil unit terminals
Fig (j) – Myzone C225
Correct polarity
Shielded, 2 core, twisted
pair, control cable
(not supplied)
Y
X
X
CN1 = COM - BM52
Y
X
Y
Indoor PCB
Myzone 3
CPU
