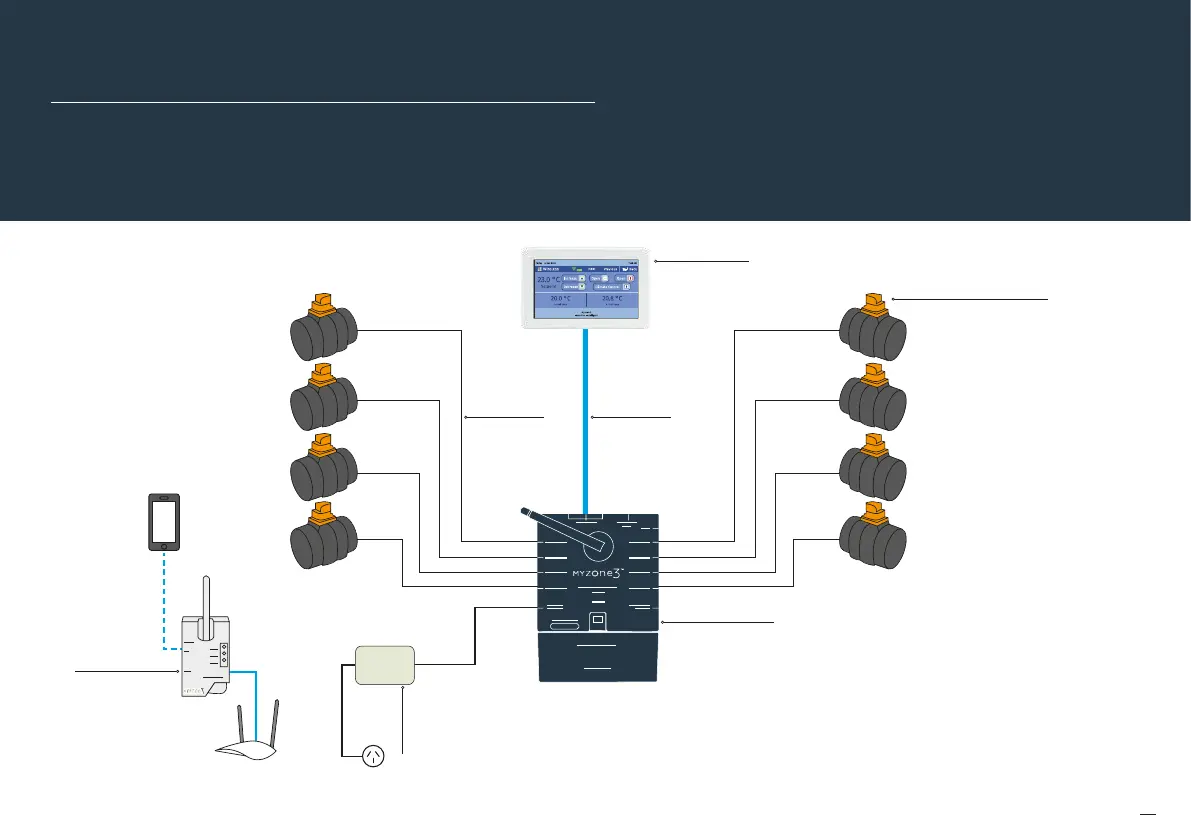

Myzone Wiring Layout
ON/OFF Zone Control Only
(Max 8 Zones, Wi-Fi Optional)
240V/24V
Zone 7
Zone 5
Zone 3
Zone 1
Zone 8
Zone 6
Zone 4
Zone 2
Wi-Fi Bridge
(205126)
240V/24V Transformer
(3205599)
Myzone 3 CPU
(3205598)
Nexus Tablet
(205295)
Zoneboss
Zone Motor
RJ12 Cable
(1609219)
RJ45 Cable
(3205601)
