Daikin Myzone 3 - Myzone Wiring Connections to Mitsubishi Electric Units

35
25. Unit make:
26. Mitsubishi
Electric
27. PEA-M###GAA
Myzone Wiring
Connections to
Mitsubishi
Electric Units
Connection
Connect a shielded, 2 core, twisted pair control cable from the
C225/C325MI to the 1/2 in the fan coil unit. Polarity is critical
see Fig (i) & (n) below, for correct connection.
F

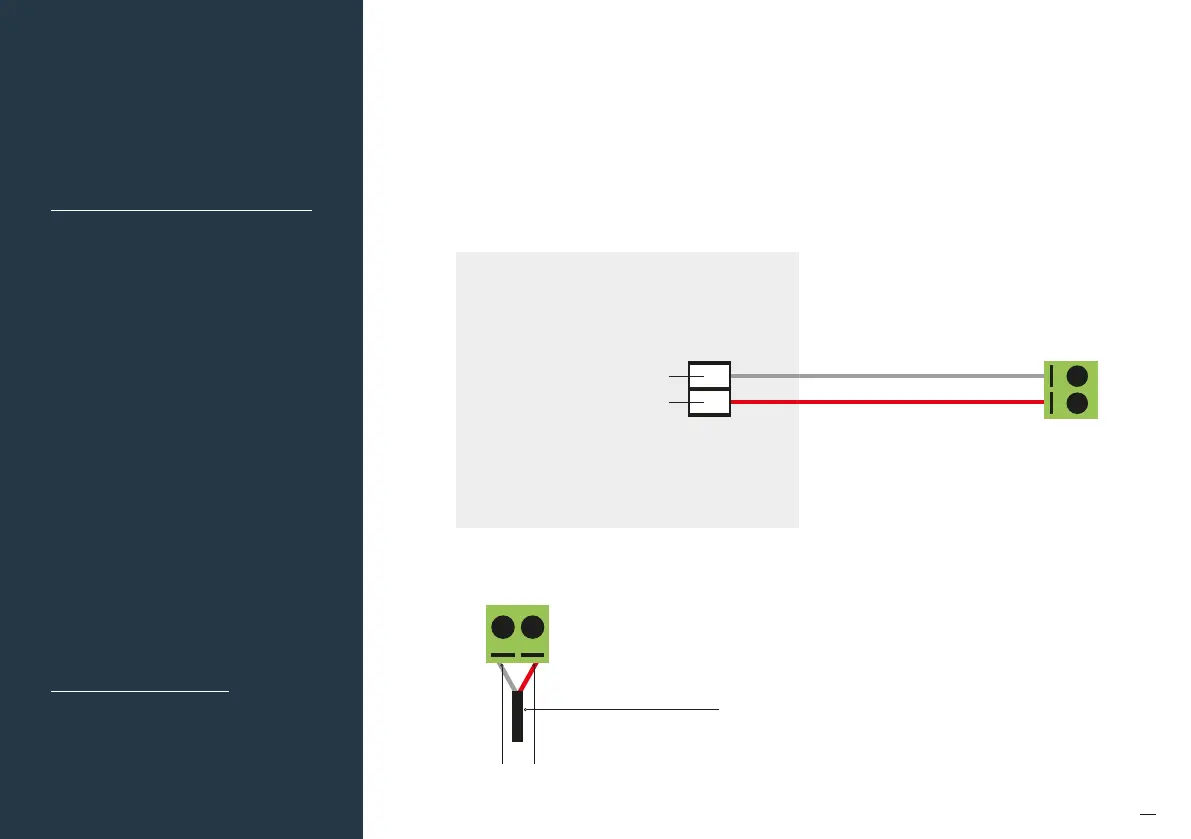

ig (i) – Indoor fan coil unit terminals
1
2
1
2
Indoor PCB
Fig (n) – Myzone C225/C325MI
Correct polarity
Shielded, 2 core, twisted
pair, control cable
(not supplied)
2
3
1
2
Myzone 3
CPU
