Danfoss VLT AutomationDrive FC 300 Design Guide

Frame size E1 E2 F1 F2 F3 F4
350–550 hp
[250–400 kW]
(380–500 V)
475–750 hp
[355–560 kW]
(525–690 V)
350–550 hp
[250–400 kW]
(380–500 V)
475–750 hp
[355–560 kW]
(525–690 V)
600–850 hp
[450–630 kW]
(380–500 V)
850–1075 hp
[630–800 kW]
(525–690 V)
950–1075 hp
[710–800 kW]
(380–500 V)
1200–1600 hp
[900–1200 kW]
(525–690 V)
600–850 hp
[450–630 kW]
(380–500 V)
850–1075 hp
[630–800 kW]
(525–690 V)
950–1075 hp
[710–800 kW]
(380–500 V)
1200–1600 hp
[900–1200 kW]
(525–690 V)
IP
NEMA
21, 54
Type 12
00
Chassis
21, 54
Type 12
21, 54
Type 12
21, 54
Type 12
21, 54
Type 12
Shipping
dimensions
(in [mm])
Height 33.07 [840] 32.72 [831] 91.50 [2324] 91.50 [2324] 91.50 [2324] 91.50 [2324]
Width 86.50 [2197] 67.13 [1705] 61.77 [1569] 77.24 [1962] 85.0 [2159] 100.75 [2559]
Depth 28.98 [736] 28.98 [736] 44.49 [1130] 44.49 [1130] 44.49 [1130] 44.49 [1130]
Drive
dimensions
(in [mm])
Height 78.74 [2000] 60.91 [1547] 86.77 [2204] 86.77 [2204] 86.77 [2204] 86.77 [2204]
Width 23.62 [600] 23.03 [585] 55.12 [1400] 70.87 [1800] 78.74 [2000] 94.49 [2400]
Depth 19.45 [494] 19.61 [498] 23.86 [606] 23.86 [606] 23.86 [606] 23.86 [606]
Max weight (lbs [kg]) 690.05 [313] 610.68 [277] 2242.10 [1017] 2777.82 [1260] 2905.69 [1318] 3441.42 [1561]
Table 6.21 Mechanical Dimensions, Frame Size E1-E2, F1-F4
6.1.5
Mechanical Dimensions, 12-Pulse Units
130BB754.10
800
607
IP/21
NEMA 1
IP/54
NEMA 12
1400
m3/Hr
824
CFM
618
CFM
1050
m3/Hr
1160
CFM
1970
m3/Hr
2280
2205
1497

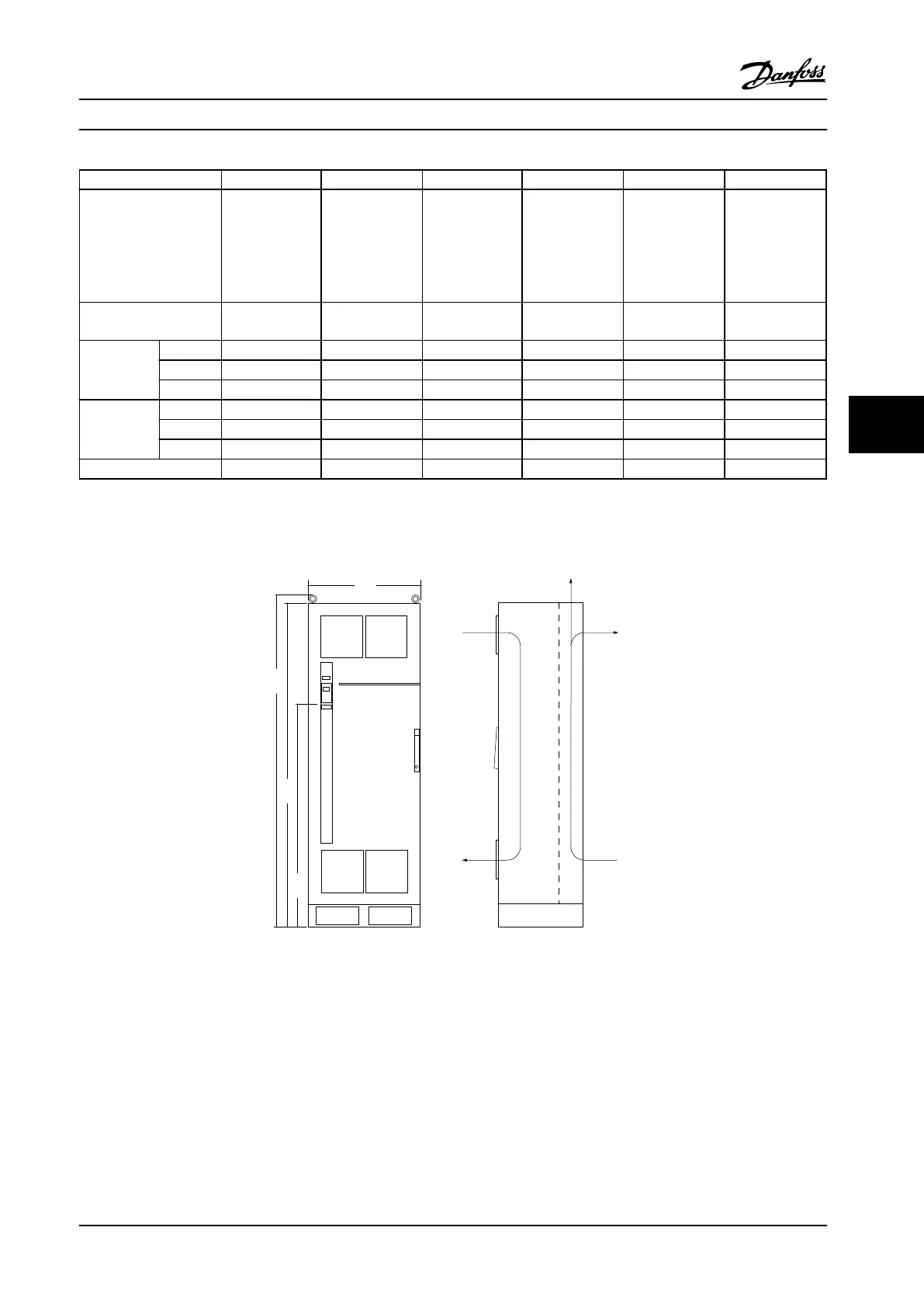

Figure 6.27 Mechanical Dimensions (mm), F8
Mechanical Installation Design Guide
MG34S222 Danfoss A/S © Rev. 2014-02-10 All rights reserved. 125
6 6
