Terminal Numbers:
Terminal 35: - external 24 V DC supply
Terminal 36: + external 24 V DC supply
To install the 24 V Backup Option MCB 107, follow these
steps:
1. Remove the LCP or blind cover
2. Remove the terminal cover
3. Remove the cable decoupling plate and the
plastic cover underneath
4. Insert the 24 V DC backup external supply option
in the option slot
5. Mount the cable decoupling plate
6. Attach the terminal cover and the LCP or blind
cover
When MCB 107, 24 V backup option is supplying the
control circuit, the internal 24 V supply is automatically
disconnected. For more information on installation, consult
the separate instructions that accompany the optional
equipment.
130BC531.10

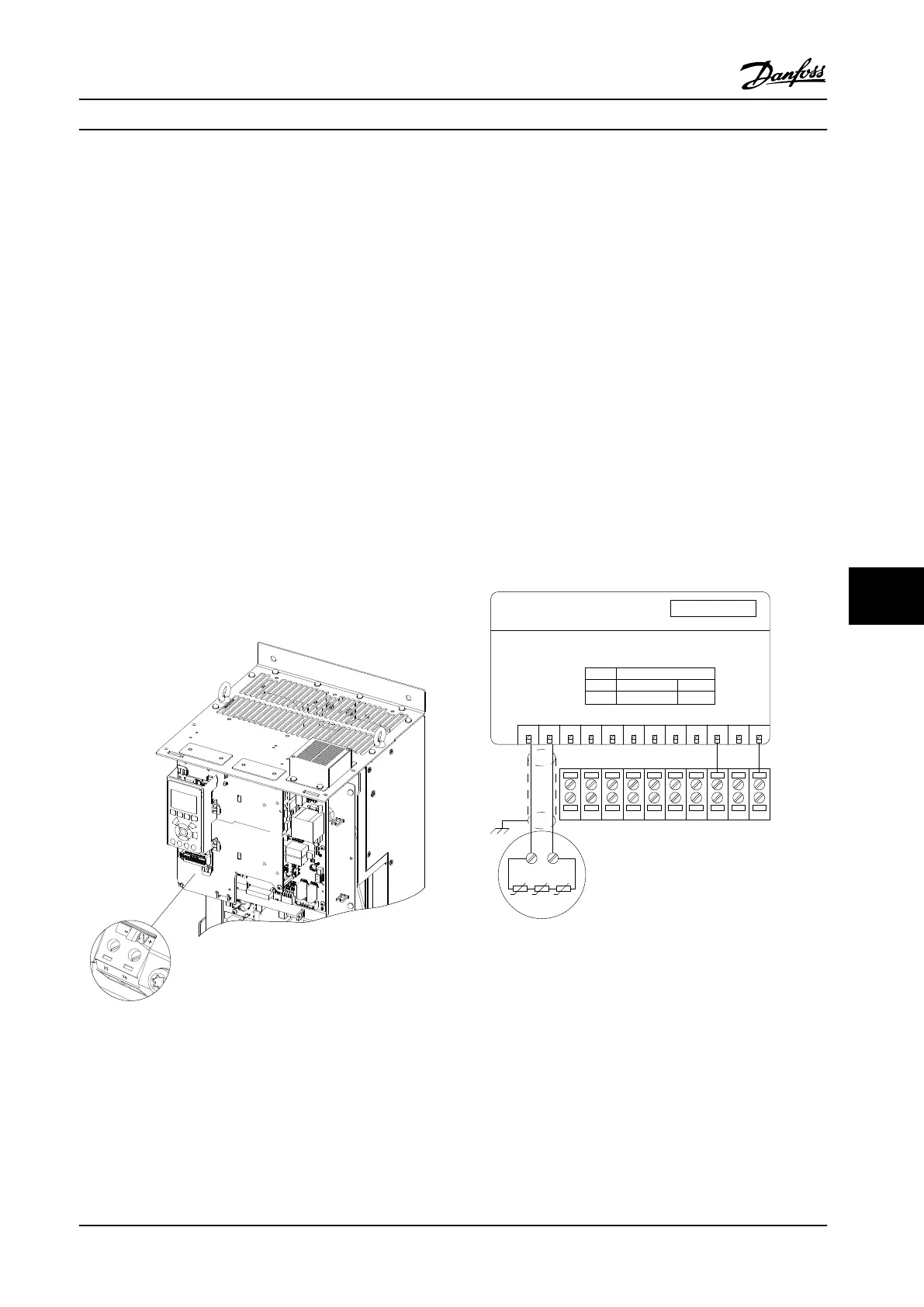

Figure 9.14 24 V Backup Power Supply Connection
9.7 PTC Thermistor Card MCB 112
The MCB 112 option makes it possible to monitor the
temperature of an electrical motor through a galvanically-
isolated PTC thermistor input. It is a B-option for FC 302
with Safe Torque Off (STO).
For information on mounting and installing the option, see
the instructions that accompany it. For different
application possibilities, see .
X44/1 and X44/2 are the thermistor inputs. X44/12 enables
safe torque off of the FC 302 (T-37) if the thermistor values
make it necessary, and X44/10 informs the FC 302 that a
request for safe torque off has come from the MCB 112 to
ensure suitable alarm handling. One of the digital inputs of
the FC 302 (or a DI of a mounted option) must be set to
PTC Card 1 [80] in order to use the information from
X44/10. 5-19 Terminal 37 Safe Stop must be configured to
the desired safe torque off functionality. Default is safe
torque off alarm.
MS 220 DA
11
10
20-28 VDC 10 mA
12
20-28 VDC
60 mA
com
ZIEHL
X44
12 13 18 19 27 29 32 33 20 37
3
NC
4
NC
5
NC
6
NC
7
NC
8
NC
9
NC
10 11
NC
121
T1
2
T2
T
P
T
P
PTC
M3~
130BA638.10
DO
Motor protection
MCB 112 PTC Thermistor Card
Option B
Reference for 10, 12
DO FOR SAFE STOP T37
Code No.130B1137
Control Terminals of FC302
Figure 9.15 Installation of MCB 112
Options and Accessories Design Guide
MG34S222 Danfoss A/S © Rev. 2014-02-10 All rights reserved. 259
9 9
