6.2.13 Pedestal Installation of F-frames
The F-frame adjustable frequency drives are shipped with a
pedestal. The F-frame pedestals use eight bolts instead of
four, as shown in Figure 6.102.
130BX472.11
Figure 6.102 Pedestal Bolt Installation
To install a pedestal-mounted F-frame unit, perform the
following steps:
1. If using a kit to direct the airflow from the
heatsink to the outside vent on the back of the
adjustable frequency drive, verify that there is a
minimum of 4 in [100 mm] ceiling clearance.
2. Install each M8x60 mm bolt with lock washer and
flat washer through the frame into the threaded
hole in the base. Install four bolts per cabinet.
Refer to Figure 6.103
3. Install each M10x30 mm bolt with captive lock
washer and flat washer through the base plate
and into the threaded hole in the base. Install
four bolts per cabinet. Refer to Figure 6.103

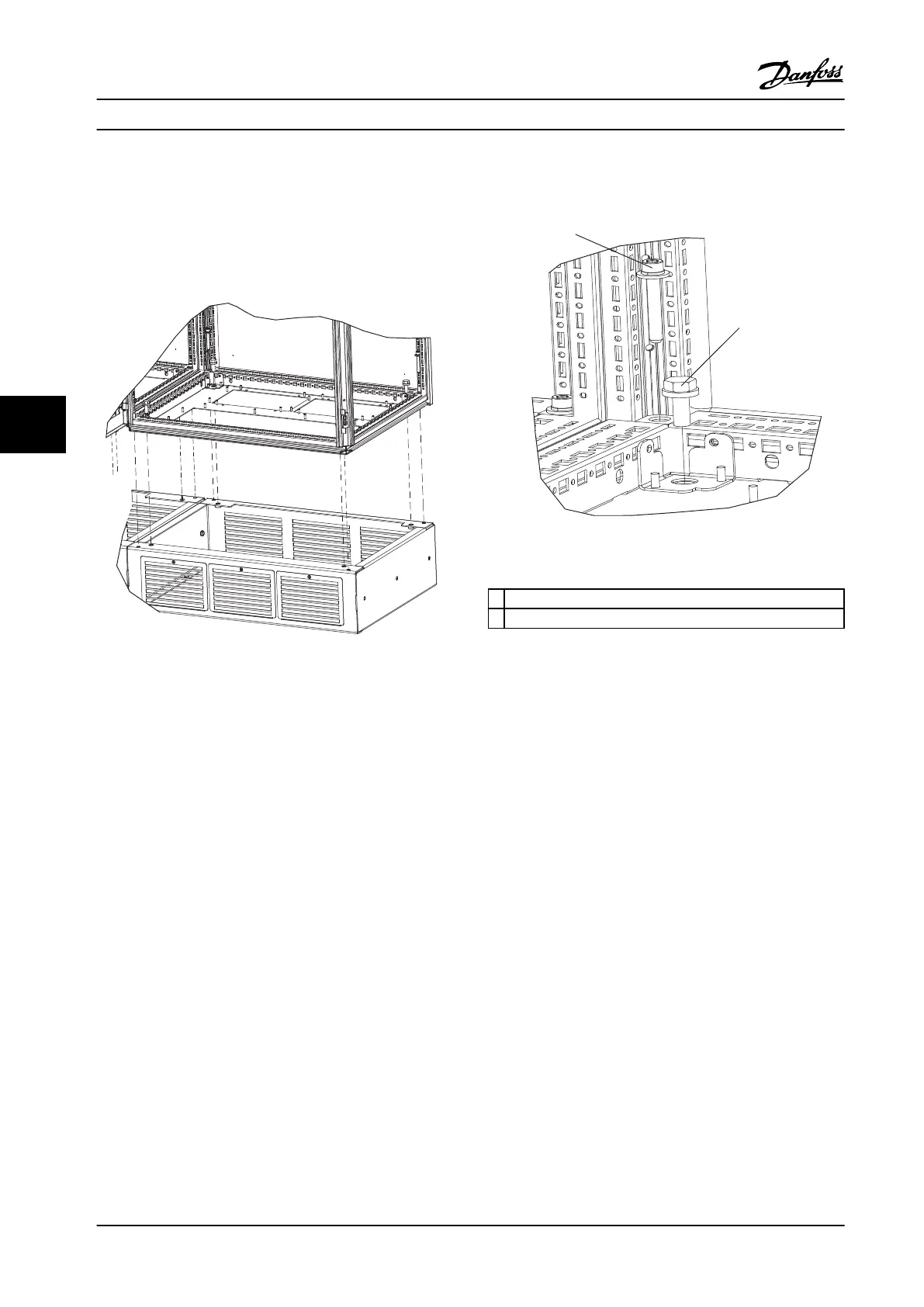

130BX471.11
1
2
Figure 6.103 Fastener Location Detail
1 M8x60 mm bolt
2 M10x30 mm bolt
Table 6.63 Legend to Figure 6.103
