Danfoss VLT AutomationDrive FC 300 Design Guide

130BB003.13
578
(22.8)
776
(30.6)

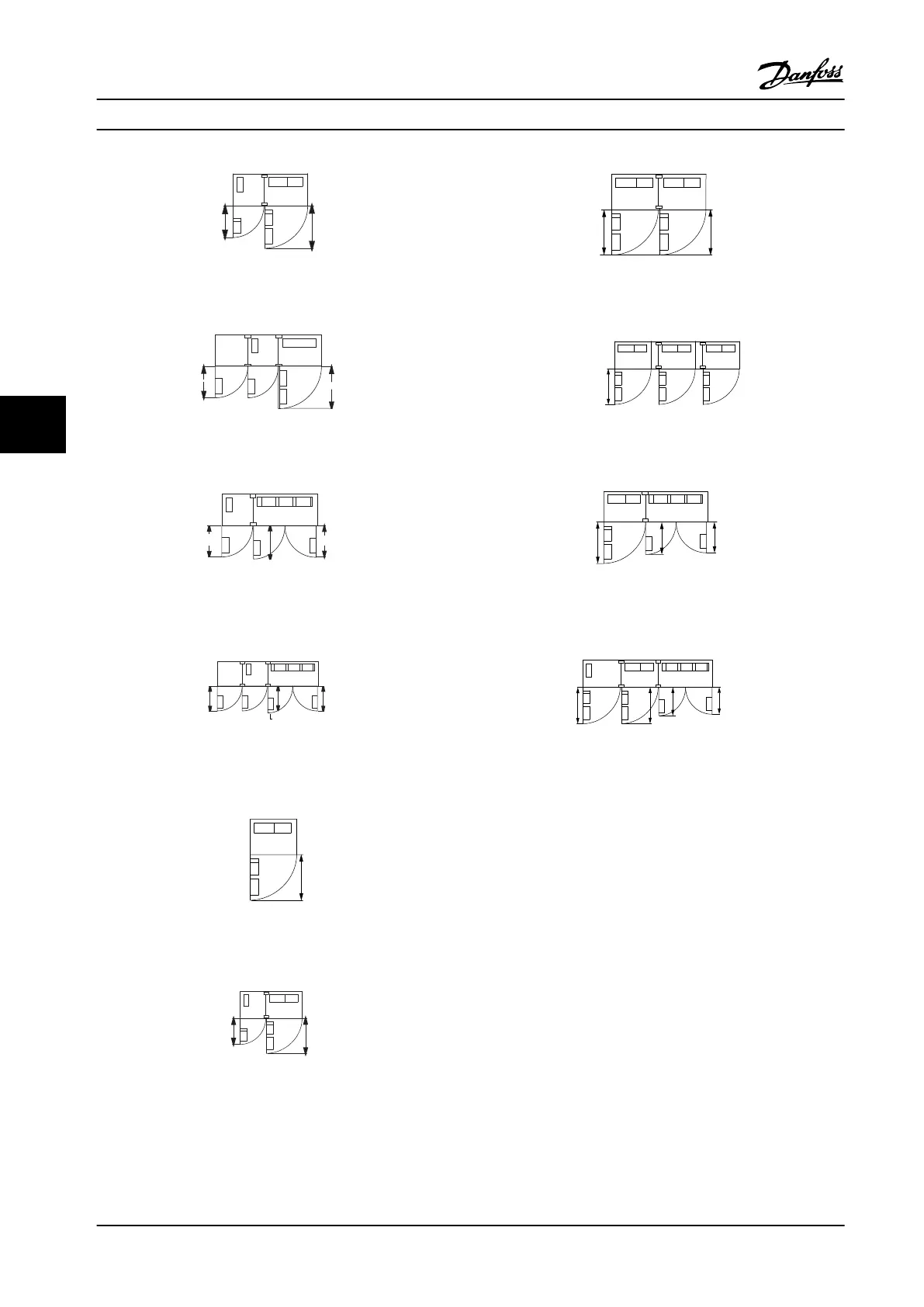

Figure 6.36 Front Clearance of IP21/IP54 Enclosure Type,
Frame Size F1
2X578
[22.8]
776
[30.6]
130BB004.13
Figure 6.37 Front Clearance of IP21/IP54 Enclosure Type,
Frame Size F3
130BB005.13
624
[24.6]
579
[22.8]
578
[22.8]
Figure 6.38 Front Clearance of IP21/IP54 Enclosure Type,
Frame Size F2
624
(24.6)
2x579
(22.8)
578
(22.8)
130BB006.10
Figure 6.39 Front Clearance of IP21/IP54 Enclosure Type,
Frame Size F4
776
(30.6)
130BB531.10
Figure 6.40 Front Clearance of IP21/IP54 Enclosure Type,
Frame Size F8
130BB003.13
578
(22.8)
776
(30.6)
Figure 6.41 Front Clearance of IP21/IP54 Enclosure Type,
Frame Size F9
776
(30.6)
776
(30.6)
130BB574.10
Figure 6.42 Front Clearance of IP21/IP54 Enclosure Type,
Frame Size F10
776
(30.6)
(2x)
130BB575.10
Figure 6.43 Front Clearance of IP21/IP54 Enclosure Type,
Frame Size F11
624
(24.6)
579
(22.8)
130BB576.10
776
(30.6)
Figure 6.44 Front Clearance of IP21/IP54 Enclosure Type,
Frame Size F12
624
(24.6)
579
(22.8)
776
(30.6)
776
(30.6)
130BB577.10
Figure 6.45 Front Clearance of IP21/IP54 Enclosure Type,
Frame Size F13
Mechanical Installation Design Guide
132 Danfoss A/S © Rev. 2014-02-10 All rights reserved. MG34S222
