Danfoss VLT AutomationDrive FC 300 - Page 199

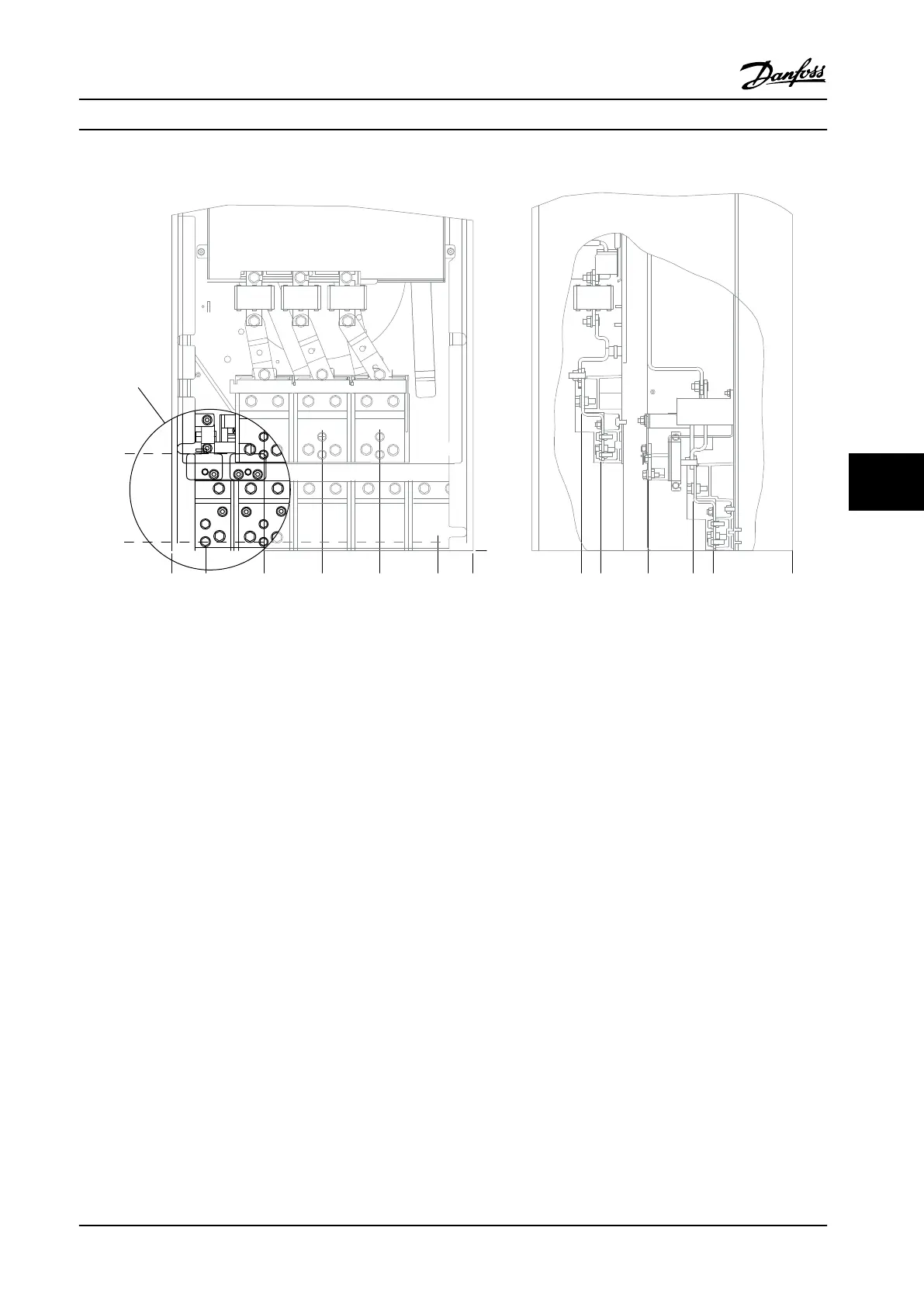

Terminal Locations - Frame Size E2
176FA280.10
585[23.0] 518[20.4] 405[15.9]
68[2.7]
0[0.0]
186[7.3]
0[0.0] 0[0.0]
181[7.1]
293[11.5] 409[16.1] 371[14.6] 280[11.0]
192[7.6] 154[6.1]
17[0.7]
A
R/L1 91
9
S/L2 92
U/T1 96 V/T2 97
T/L3 93
W/T3 98
FASTENER TORQUE M8 9.6 Nm (7 FT-LB) FASTENER TORQUE M8 9.6 N m (7 FT-LB)
Figure 7.20 IP00 Enclosure Power Connection Positions
