Danfoss VLT AutomationDrive FC 300 - Page 22

Frame size E1 E2 F1/F3 F2/ F4
130BA818.10
130BA821.10
F3
F1
130BA959.10
F4
F2
130BB092.11
Enclosure
protection
IP 21/54 00 21/54 21/54
NEMA Type 1/Type 12 Chassis Type 1/Type 12 Type 1/Type 12
High overload
rated power -160%
overload torque
350–550 hp [250–400 kW]
at 400 V
(380–500 V)
475–750 hp [355–560 kW]
at 690 V
(525–690 V)
350–550 hp
[250–400 kW] at 400 V
(380–500 V)
475–750 hp
[355–560 kW] at 690 V
(525–690 V)
600–850 hp [450–630 kW]
at 400 V
(380–500 V)
850–1075 hp [630–800 kW]
at 690 V
(525–690 V)
950–1075 hp [710–800 kW] at
400 V
(380–500 V)
1200–1350 hp [900–1000 kW]
at 690 V
(525–690 V)

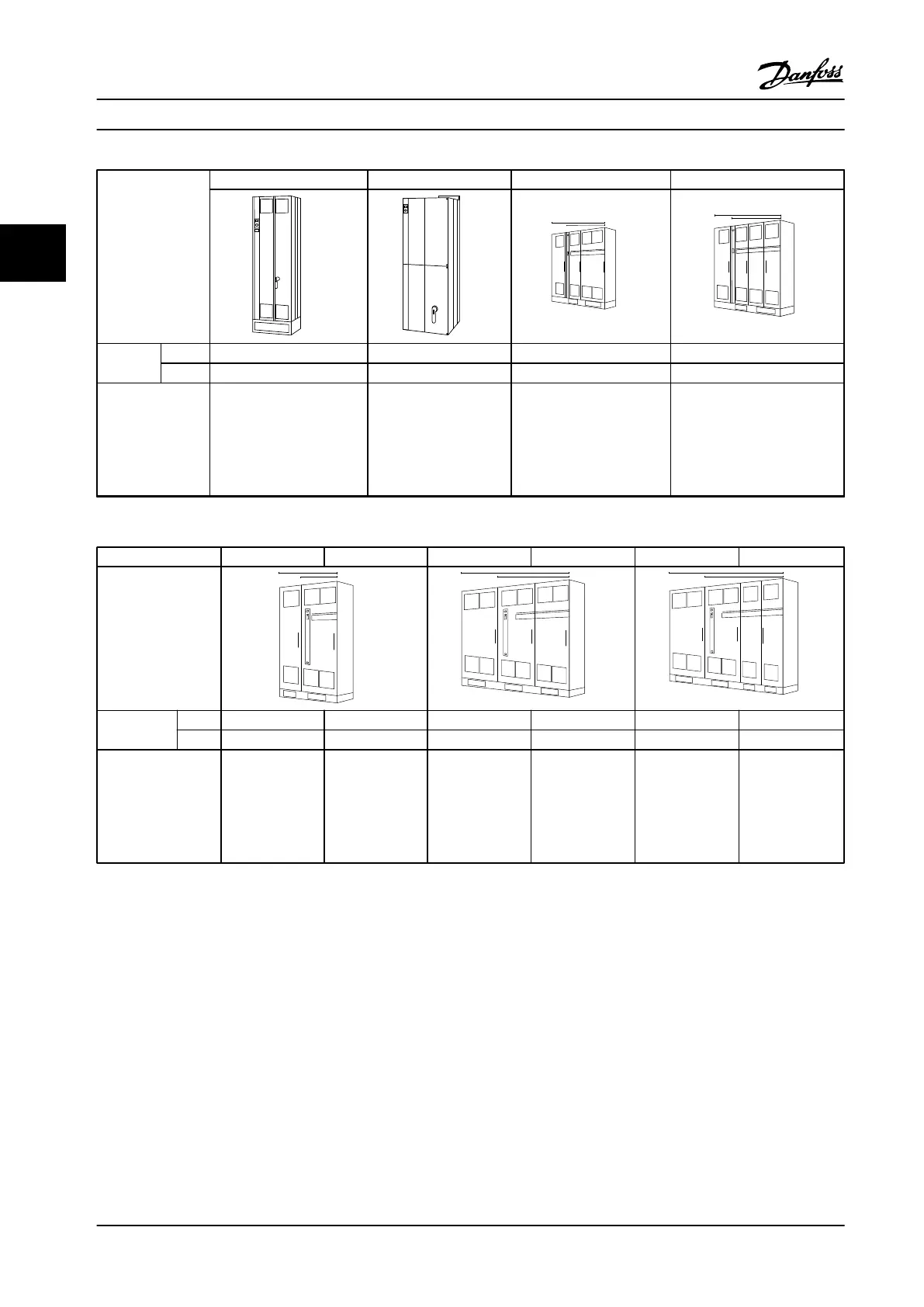

Table 3.1 Product Overview, 6-Pulse Adjustable Frequency Drives
Frame size F8 F9 F10 F11 F12 F13
F9
F8
130BB690.10
F11
F10
130BB691.10
F13
F12
130BB692.10
Enclosure
protection
IP 21/54 21/54 21/54 21/54 21/54 21/54
NEMA Type 1/Type 12 Type 1/Type 12 Type 1/Type 12 Type 1/Type 12 Type 1/Type 12 Type 1/Type 12
High overload rated
power -160%
overload torque
350–550 hp
[250–400 kW]
(380–500 V)
475–750 hp
[355–560 kW]
(525–690 V)
350–550 hp
[250–400 kW]
(380–500 V)
475–750 hp
[355–560 kW]
(525–690 V)
600–850 hp
[450–630 kW]
(380–500 V)
850–1075 hp
[630–800 kW]
(525–690 V)
600–850 hp
[450–630 kW]
(380–500 V)
850–1075 hp
[630–800 kW]
(525–690 V)
950–1075 hp
[710–800 kW]
(380–500 V)
1200–1600 hp
[900–1200 kW]
(525–690 V)
950–1075 hp
[710–800 kW]
(380–500 V)
1200–1600 hp
[900–1200 kW]
(525–690 V)
Table 3.2 Product Overview, 12-Pulse Adjustable Frequency Drives
Product Introduction Design Guide
20 Danfoss A/S © Rev. 2014-02-10 All rights reserved. MG34S222
