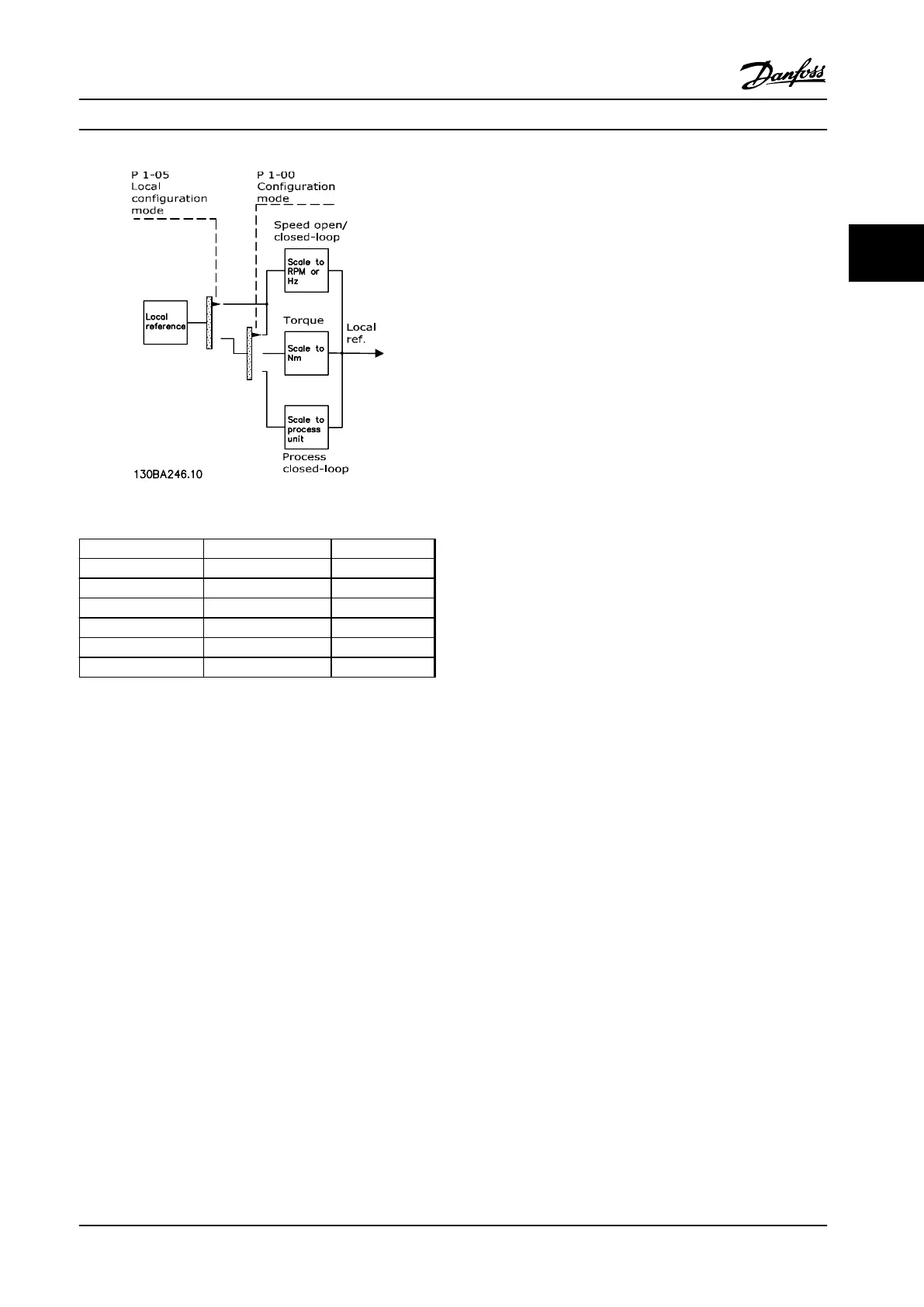

Figure 3.9 Configuration Mode
Hand on 3-13 Reference Site Active reference
Hand Linked to Hand/Auto Local
Hand⇒Off Linked to Hand/Auto Local
Auto Linked to Hand/Auto Remote
Auto⇒Off Linked to Hand/Auto Remote
All keys Local Local
All keys Remote Remote
Table 3.4 Conditions for Local/Remote Reference Activation
1-00 Configuration Mode determines what kind of
application control principle (for example, speed, torque, or
process control) is used when the remote reference is
active. 1-05 Local Mode Configuration determines the kind
of application control principle that is used when the local
reference is active. One of them is always active, but both
cannot be active at the same time.
