1D Symbologies Enter/Exit Programming Mode

Product Reference Guide

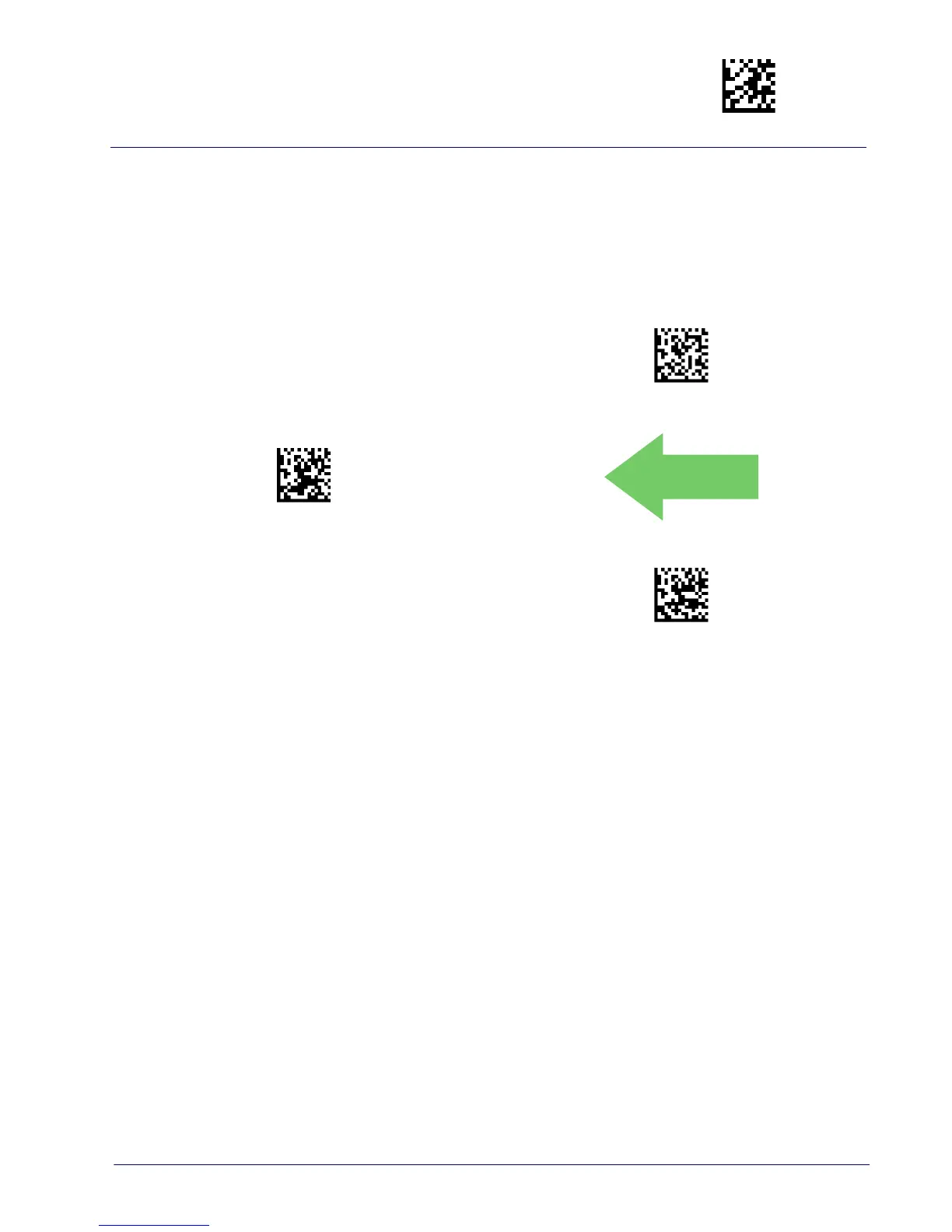

CODE EAN/UPC

Coupon Control

This feature is used to control the reader’s method of processing coupon

labels.

$CCPLC00(CR)

Coupon Control = Allow all coupon bar codes to be decoded

$CCPLC01(CR)

Coupon Control = Enable only UPCA coupon decoding

DEFAULT

$CCPLC02(CR)

Coupon Control = Enable only GS1 DataBar™

coupon decoding

Default Chapter3
