Appendix C – Available Fonts

Class Series 2 Programmer’s Manual 181

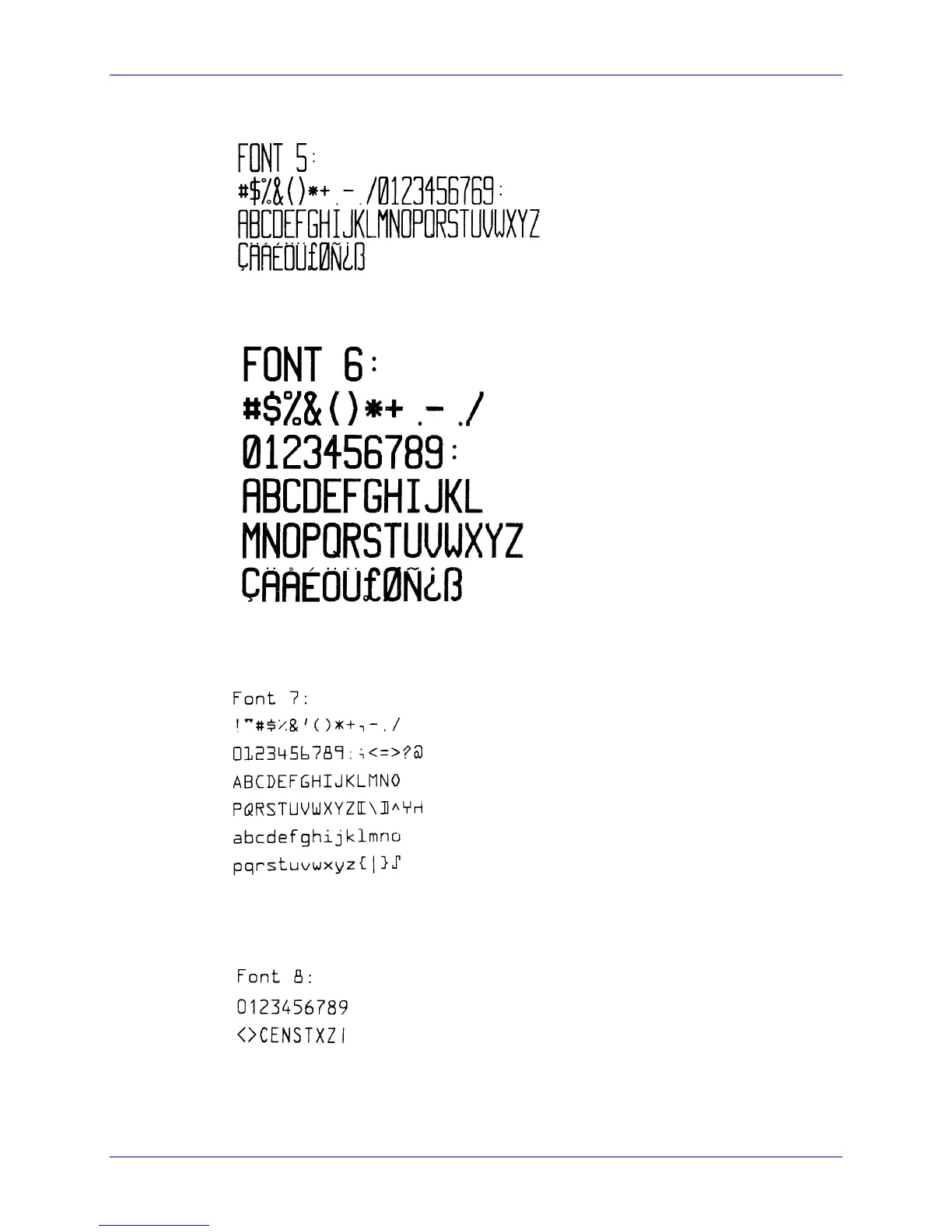

5: Identifies a 62-character alphanumeric upper case font.

6: Identifies a 62-character alphanumeric uppercase font.

7: Identifies a font that prints OCR-A, size I.

8: Identifies a font that prints OCR-B, size III.
