Datamax E-Class Mark II Programmer's Manual

Appendix G – Bar Code Details
224 Class Series 2 Programmer’s Manual
Model 1: 21 X 21 cells to 73 X 73 cells (Versions 1 to 14, increase in steps of 4 cells
per side)
Model 2: 21 X 21 cells to 177 X 177 cells (Versions 1 to 40, increase in steps of 4
cells per side)
Data Characters per symbol (maximum for symbol size):
Numeric Data
Model 1; Version 14; ECC = L: 1,167 characters
Model 2; Version 40; ECC = L: 7,089 characters
Alphanumeric Data
Model 1; Version 14; ECC = L: 707 characters
Model 2; Version 40; ECC = L: 4,296 characters
Binary Data
Model 1; Version 14; ECC = L: 486 characters
Model 2; Version 40; ECC = L: 2,953 characters
Kanji Data
Model 1; Version 14; ECC = L: 299 characters
Model 2; Version 40; ECC = L: 1,817 characters
Code Type: Matrix
Orientation Independence: Yes

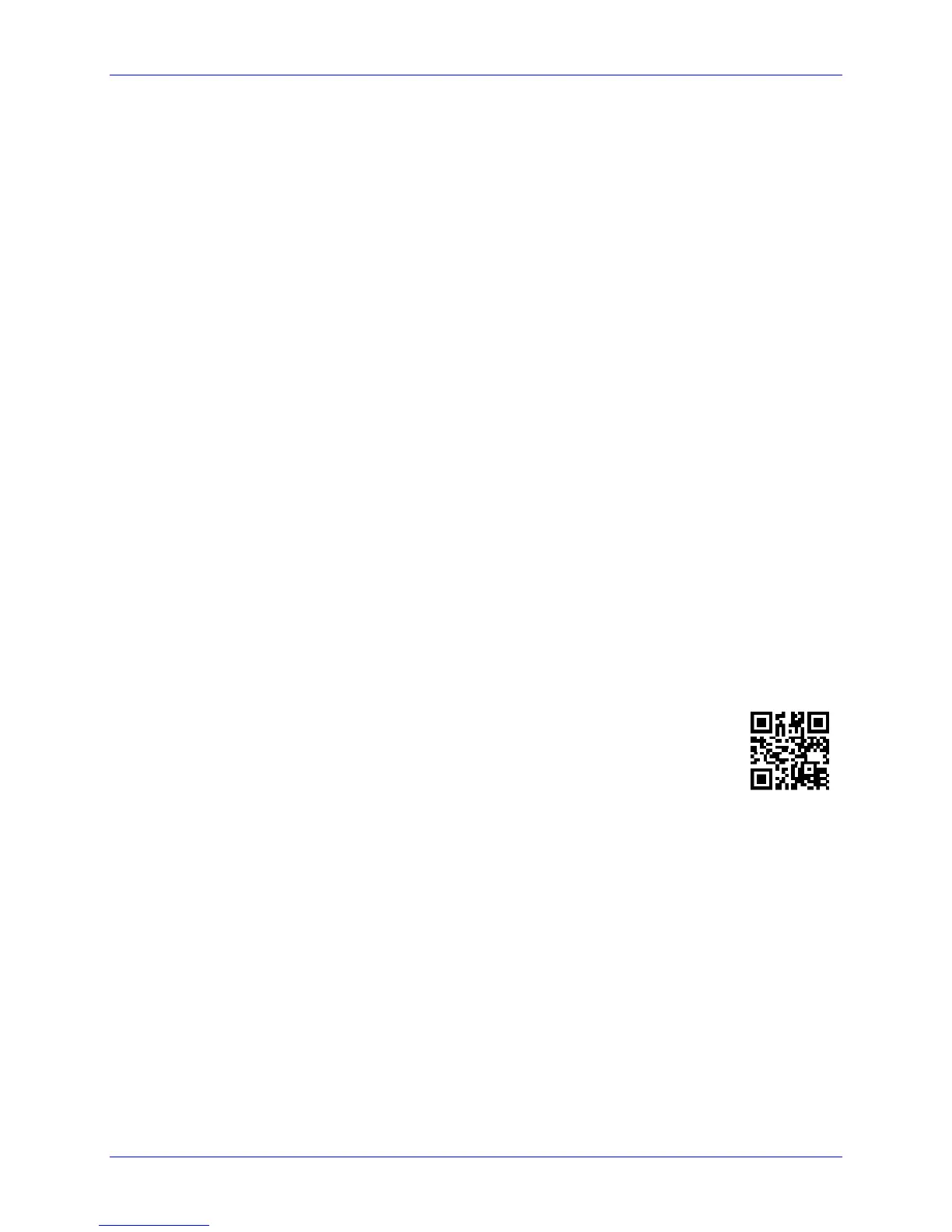

Example
<STX>L
D11<CR>
1W1D44000001000102HM,AThis is the data portion also with
binary,B0003<0xfe><0xca><0x83><0x0D>
121100000000100Barcode W1D<CR>
E
Barcode W1D
Where:
QR Code bar code, Cell Size = 0.1 inch square, positioned at X =. 1” and Y = .1”,
ECC=H, Mask = Automatic, Data Input Mode = Manual.
Other Examples:
DPL field record, QR Code bar code, Cell Size = 0.04 inch square, positioned at X =
.1” and Y = .1”, ECC = H, Mask = 3, Data Input Mode = Manual:
1W1D4400000100010H3M,AThis is the data portion also with
binary,B0003<0xfe><0xca><0x83><0x0D>

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
