Datamax E-Class Mark II Programmer's Manual

Appendix P – ILPC Programming Examples
290 Class Series 2 Programmer’s Manual
112200002200030Rotation 3<CR>
3911UH002330165P012P012<AC><00><00><00><CR>
3911UH002330220P012P012<AC><65><00><00><CR>
3911UH002330265P012P012<AC><69><00><00><CR>
3911UH002330315P012P012<AC><DF><00><00><CR>
112200002000030Rotation 4<CR>
4911UH001950165P012P012<AC><00><00><00><CR>
4911UH001950215P012P012<AC><65><00><00><CR>
4911UH001950265P012P012<AC><69><00><00><CR>
4911UH001950315P012P012<AC><DF><00><00><CR>
1X1100001100010b0392007500020002<CR>

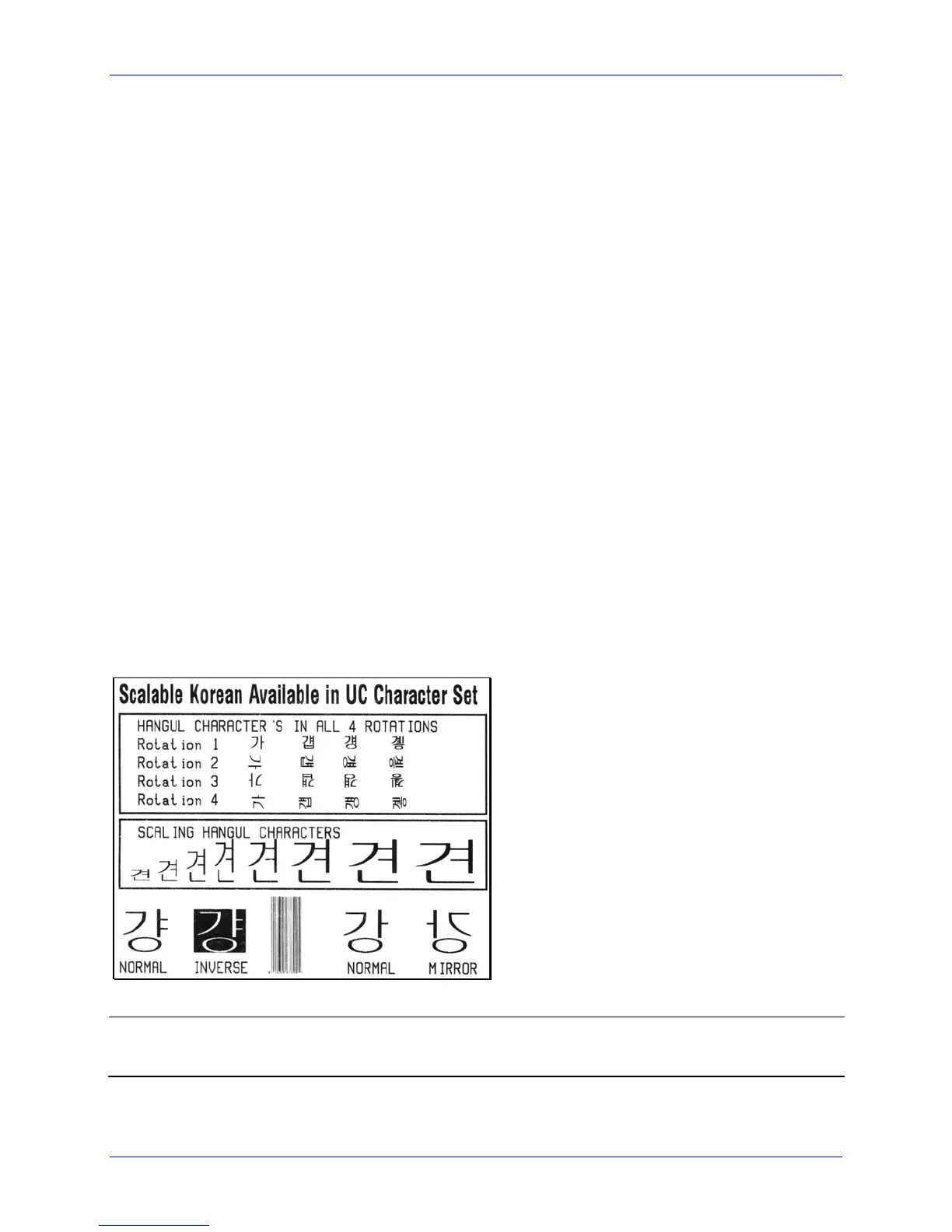

112200001650030SCALING HANGUL CHARACTERS<CR>
1911UH001200020P010P020<AC><AC><00><00><CR>
1911UH001200050P020P020<AC><AC><00><00><CR>
1911UH001200080P030P020<AC><AC><00><00><CR>
1911UH001200110P040P020<AC><AC><00><00><CR>
1911UH001200145P040P030<AC><AC><00><00><CR>
1911UH001200190P040P040<AC><AC><00><00><CR>
1911UH001200250P040P050<AC><AC><00><00><CR>
1911UH001200320P040P060<AC><AC><00><00><CR>
112200000200010NORMAL INVERSE<CR>
112200000200245 NORMAL MIRROR<CR>
1911UH000450010P040P040<AC><4D><00><00><CR>
1911UH000450245P040P040<AC><15><00><00><CR>
A5<CR>
1911UH000450090P040P040<AC><4D><00><00><CR>
A1<CR>
M<CR>
1911UH000450390P040P040<AC><15><00><00><CR>
M<CR>
E<CR>

The notation “<xx>” in this DPL file should be interpreted by the reader as representing the
hexadecimal value of the byte sent to the printer.

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
